Disponibile
| Product properties | Product type: Contacts Type: Individual male contact Contact material type: turned Series: HC-M-DSUB-C HC-M-08-GBIT HC-M-25 HC-M-EMV |
| Electrical properties | Maximum load current: 5 A Rated surge voltage: 1.2 kV 1.2 kV (1 min.) Rated current: 5 A (at 20°C) |
| Connection data | Maximum load current: 5 A |

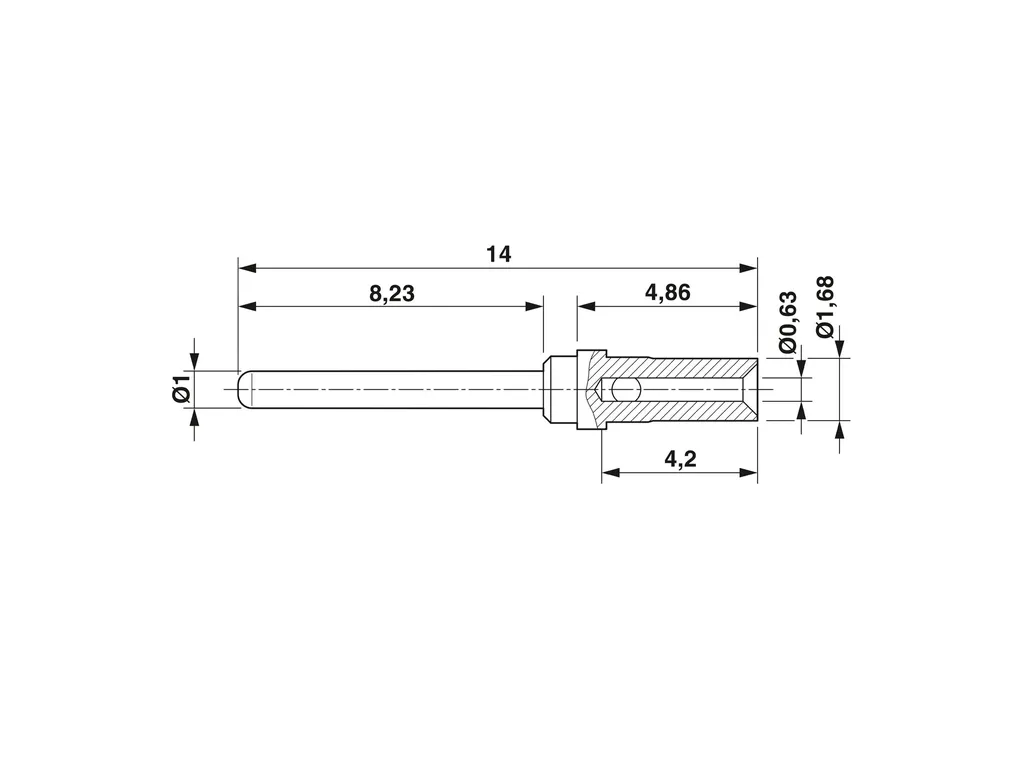

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/451f992cff5f8e47874f77d02571e92b/-S204x204-FJPG Width: 1.7 mm Height: 1.7 mm Mechanical characteristics Contact diameter: 1 mm |
| Material specifications | Material: Metal Contact material: Copper alloy Contact surface material: 0.2 µm, gold over nickel |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠200 Insertion force per signal contact: ⤠3.40 N |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -55°C ... 130°C |
| Standards and regulations | Standards/specifications: DIN41652 |
| Mounting | Mounting type: Crimp connection Connection method: Crimp connection |
| ECLASS | ECLASS-11.0: 27440204 ECLASS-12.0: 27440204 ECLASS-13.0: 27440204 |
| ETIM | ETIM 9.0: EC000796 |
| UNSPSC | UNSPSC 21.0: 39121500 |
