| Product properties | Type: D-SUB Product type: Sleeve housings No. of cable outlets: 1 Cable outlet: angled |

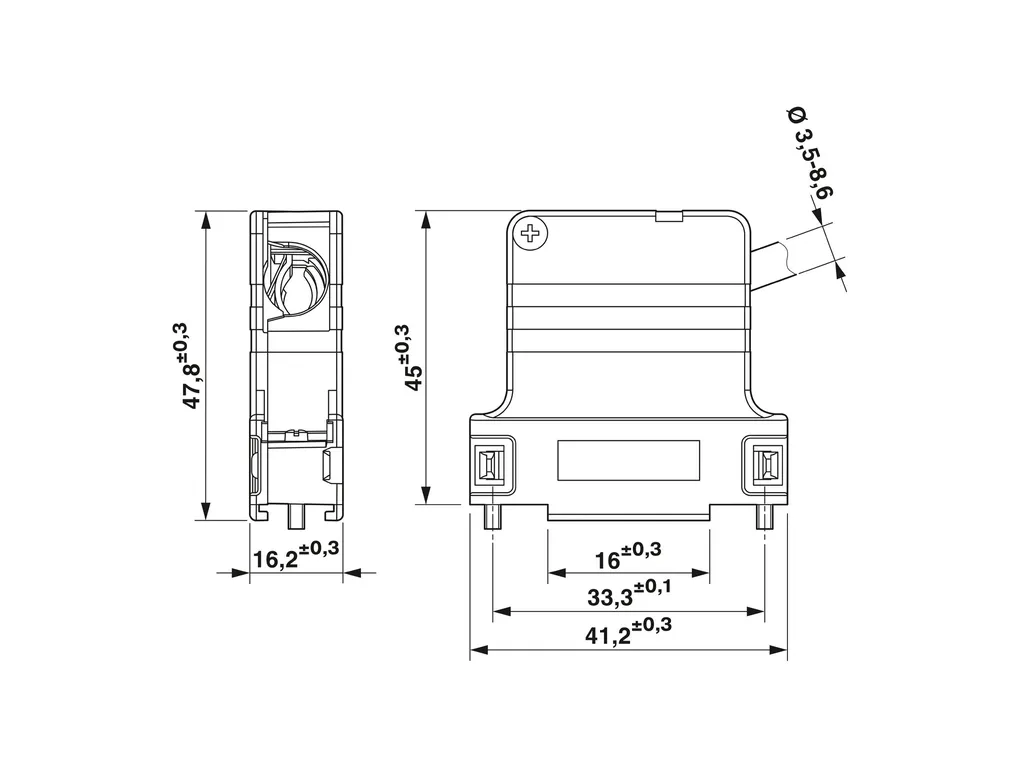

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2917d878963b6b43aae097b9644b816b/-S204x204-FJPG Width: 41.2 mm Height: 16.2 mm Depth: 49.4 mm |
| Material specifications | Color: Bare metallic Flammability rating according to UL 94: V0 Housing surface material: metal-plated Housing material: ABS, metal-plated |
| Cable/line | External cable diameter (): 3.5 mm ... 8.6 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -35°C ... 95°C |
| Mounting | Mounting type: Screw locking mechanism |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
