| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |

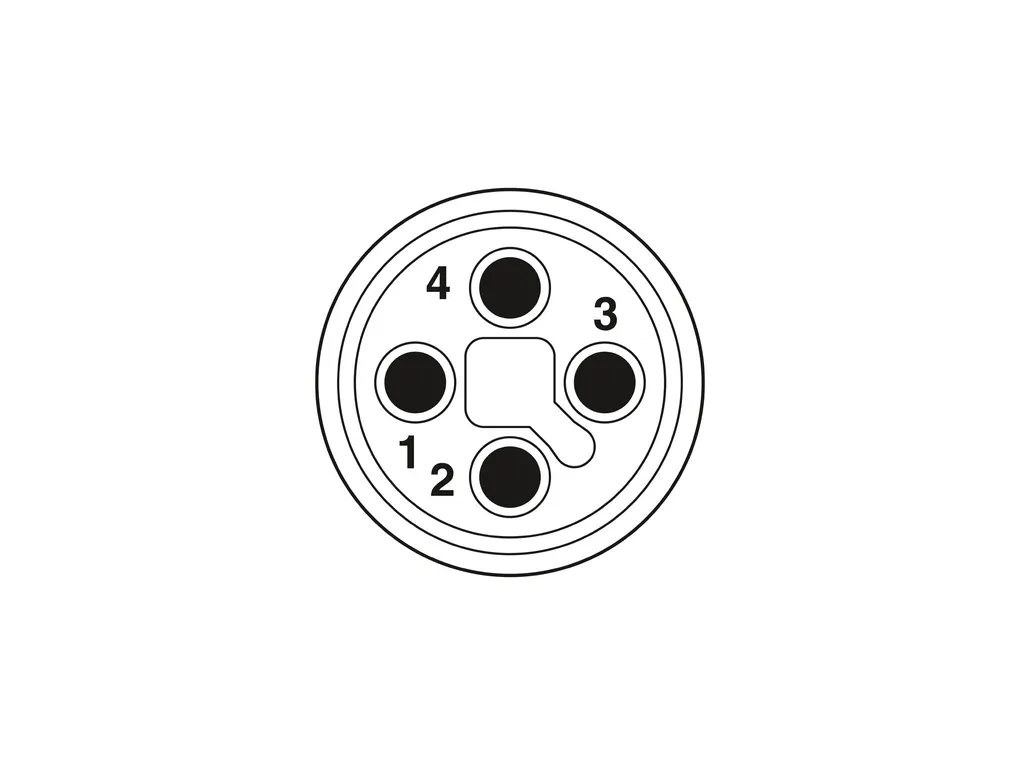

| Product properties | Product type: Contact insert Sensor type: Power Number of positions: 4 Application: Power No. of cable outlets: 1 Seal present: no Shielded: no Coding: T Thread type: M12 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated voltage in acc. with IEC 61076-2-101: 63 V Rated surge voltage: 1.5 kV 6 kV AC Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 63 VDC Nominal current IN: 12 A Test voltage: 1.5 kV |
| Interfaces | Signal type/category: Power |
| Signaling | Status display: No Status display present: No |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6 Conductor material: Bare Cu litz wires |
| Connector | Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: T |
| Cable/line | Cable length: 0.5 m Cable type: UL/cUL stranded hook-up wire Signal type/category: Power Wire diameter incl. insulation: 2 mm Single wire, color: black, brown, blue, white Cable cross section: 1.31 mm² Conductor material: Bare Cu litz wires AWG signal line: 16 Material wire insulation: mPPE Halogen-free: yes Flame resistance: in acc. to UL1581 VW1 Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -20°C ... 105°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -20°C ... 105°C (Cable, flexible installation) -40°C ... 105°C (cable, fixed installation) |
| Standards and regulations | Flame resistance: in acc. to UL1581 VW1 M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-111 Note: In line with |
| Mounting | Mounting type: Front mounting Square flange Connection method: Individual wires |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440116 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
