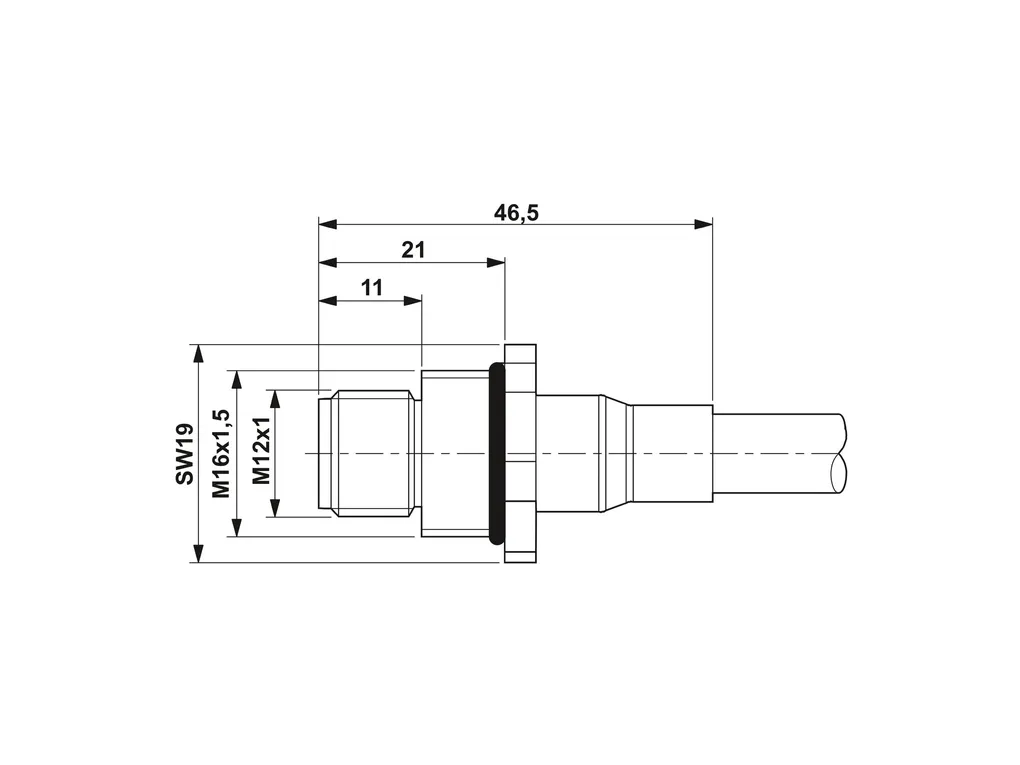

| Notes | General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Lock nut is included in the scope of delivery |
| Product properties | Product type: Data cable preassembled Sensor type: Ethernet Number of positions: 8 No. of cable outlets: 1 Shielded: yes Coding: A Cable outlet: straight Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Interfaces | Signal type/category: Ethernet CAT5 (based on IEC 11801), 1 Gbps |
| Electrical properties | Rated surge voltage: 0.8 kV Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 48 VAC 60 VDC Nominal current IN: 2 A Transmission medium: Copper Wave impedance: 100 é |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Ni/Au Outer sheath, material: PUR Conductor material: Bare Cu litz wires |
| Connection data | Connection technology Connection method: Individual wires Conductor connection Connection method: Individual wires Tightening torque: 2 Nm ... 3 Nm (Installation-side) |
| Connector | Connection 1 Type: Flush-type female connector straight M12 SPEEDCON / IP67 Number of positions: 8 Coding type: A (Standard) Degree of protection: IP67 Locking type: SPEEDCON Connection 2 Type: free cable end Number of positions: 8 |
| Cable/line | Cable length: 10 m Ethernet flexible CAT5, 4-pair[94B] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c3fd6859f812544824572f75cfdd10c/-S204x204-FJPG Cable weight: 47 kg/km UL AWM Style: 20963 (80°C/30 V) Number of positions: 8 Shielded: yes Cable type: Ethernet flexible CAT5, 4-pair[94B] Conductor structure: 4x2xAWG26/7, SF/UTP Signal runtime: 5.3 ns/m Conductor structure signal line: 7x 0.16 mm AWG signal line: 26 Conductor cross section: 4x 2x 0.14 mm² Wire diameter incl. insulation: 0.96 mm External cable diameter: 6.4 mm ±0.2mm Outer sheath, material: PUR External sheath, color: water blue RAL5021 Conductor material: Bare Cu litz wires Material wire insulation: Foamed PE Single wire, color: white/blue-blue, white/orange-orange, white/green-green, white/brown-brown Thickness, outer sheath: 1.05 mm Twisted pairs: 2 cores to the pair Overall twist: 4 pairs for core Optical shield covering: 70 % Insulation resistance: ⥠5 Gé*km Coupling resistance: ⤠100.00 mé/m (at 10 MHz) Loop resistance: ⤠290.00 é/km Wave impedance: 100 é ±5é (at 100 MHz) Cable capacity: 48 nF/km (at 1 kHz) Nominal voltage, cable: ⤠100 V Test voltage Core/Core: 700 V (50Hz, 1min.) Test voltage Core/Shield: 700 V (50Hz, 1min.) Minimum bending radius, fixed installation: 4 x D Minimum bending radius, flexible installation: 8 x D Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm Tensile strength: ⤠100 N Near end crosstalk attenuation (NEXT): 71.3 dB (with 1 MHz) 62.3 dB (at 4 ÃHz) 56.3 dB (at 10 MHz) 53.2 dB (at 16 MHz) 51.8 dB (at 20ÃHz) 48.9 dB (at 31.25ÃHz) 44.4 dB (at 62.5ÃHz) 41.3 dB (at 100 MHz) Power-summated near end crosstalk attenuation (PSNEXT): 62.3 dB (with 1 MHz) 53.3 dB (at 4 ÃHz) 47.3 dB (at 10 MHz) 44.2 dB (at 16 MHz) 42.8 dB (at 20ÃHz) 39.9 dB (at 31.25ÃHz) 35.4 dB (at 62.5ÃHz) 32.3 dB (at 100 MHz) Return attenuation (RL): 23 dB (at 4 ÃHz) 24.1 dB (at 8ÃHz) 25 dB (at 10 MHz) 25 dB (at 16 MHz) 25 dB (at 20ÃHz) 23.6 dB (at 31.25ÃHz) 21.5 dB (at 62.5ÃHz) 20.1 dB (at 100 MHz) Shield attenuation: 3.2 dB (with 1 MHz) 6 dB (at 4 ÃHz) 9.5 dB (at 10 MHz) 12.1 dB (at 16 MHz) 13.6 dB (at 20ÃHz) 17.1 dB (at 31.25ÃHz) 24.8 dB (at 62.5ÃHz) 32 dB (at 100 MHz) Halogen-free: according to IEC 60754-1 Flame resistance: according to IEC 60332-1-2 Resistance to oil: in accordance with EN 60811-2-1 Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation) -20°C ... 80°C (Cable, flexible installation) Ambient temperature (installation): -20°C ... 80°C |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 (When plugged in) IP65 (When plugged in) IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation) |
| ECLASS | ECLASS-11.0: 27060311 ECLASS-12.0: 27060311 ECLASS-13.0: 27060311 |
| ETIM | ETIM 8.0: EC001855 |
| UNSPSC | UNSPSC 21.0: 26121600 |
