PHOENIX CONTACT 1425378
PHOENIX CONTACTNon disponibile

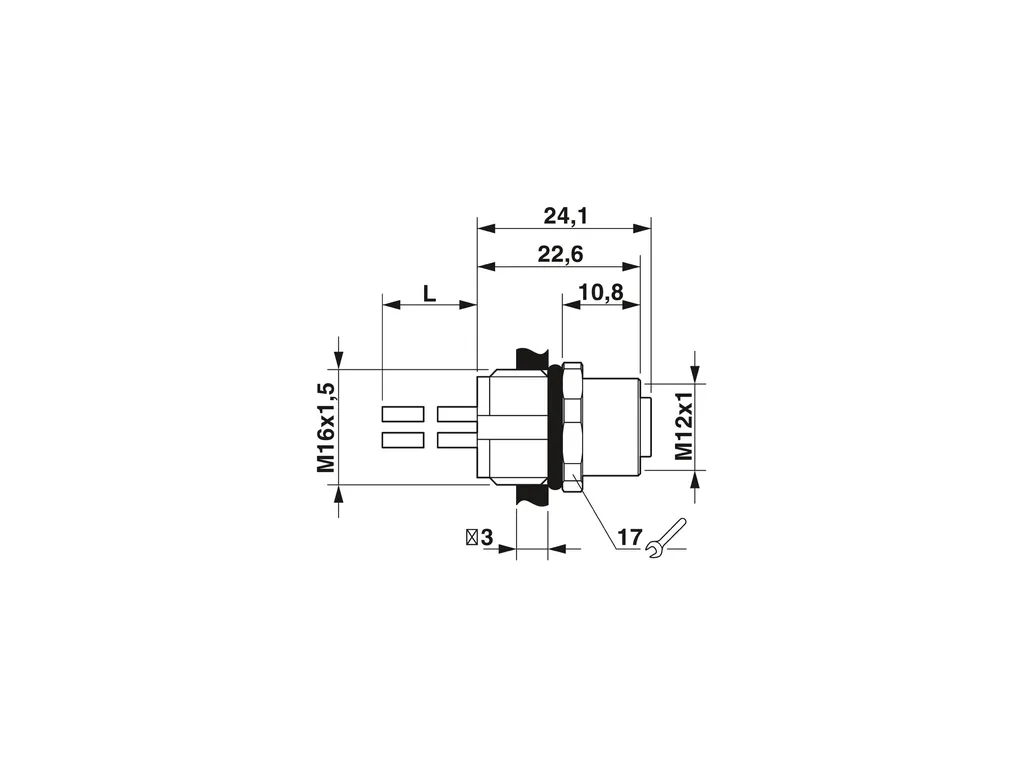

SACC-E-M12FST-4CON-M16/3,0 - Device connector front mounting

Device connector front mounting, Power, 4-position, Socket, straight, M12, coding: T, on free cable end, Front mounting, Square flange, Individual wires, cable length: 3 m, 1.31 mm2, UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239508
Cod. Articolo: 1425378
Cod. Fornitore: 1425378
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Contact connection method: Crimp connection
MountingMounting type: Front mounting
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Power
Number of positions: 4
No. of cable outlets: 1
Shielded: no
Coding: T
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA
Material for screw connection: CuZn alloy, nickel-plated
Conductor material: Bare Cu litz wires
Electrical propertiesRated surge voltage: 1.5 kV
1.5 kV AC/DC
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 63 VDC
Nominal current IN: 12 A
Test voltage: 1.5 kV
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 1.31 mm²
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Coding: T
Connection 2
Head design: free cable end
Cable/lineCable length: 3 m
Cable type: UL/cUL stranded hook-up wire
Signal type/category: Power
Wire diameter incl. insulation: 2 mm
Single wire, color: black, brown, blue, white
Cable cross section: 1.31 mm²
Conductor material: Bare Cu litz wires
AWG signal line: 16
Material wire insulation: mPPE
Halogen-free: yes
Flame resistance: in acc. to UL1581 VW1
Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation)
-20°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-20°C ... 105°C (Cable, flexible installation)
-40°C ... 105°C (cable, fixed installation)
Standards and regulationsFlame resistance: in acc. to UL1581 VW1
M12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-111
Note: In line with
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 8.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
