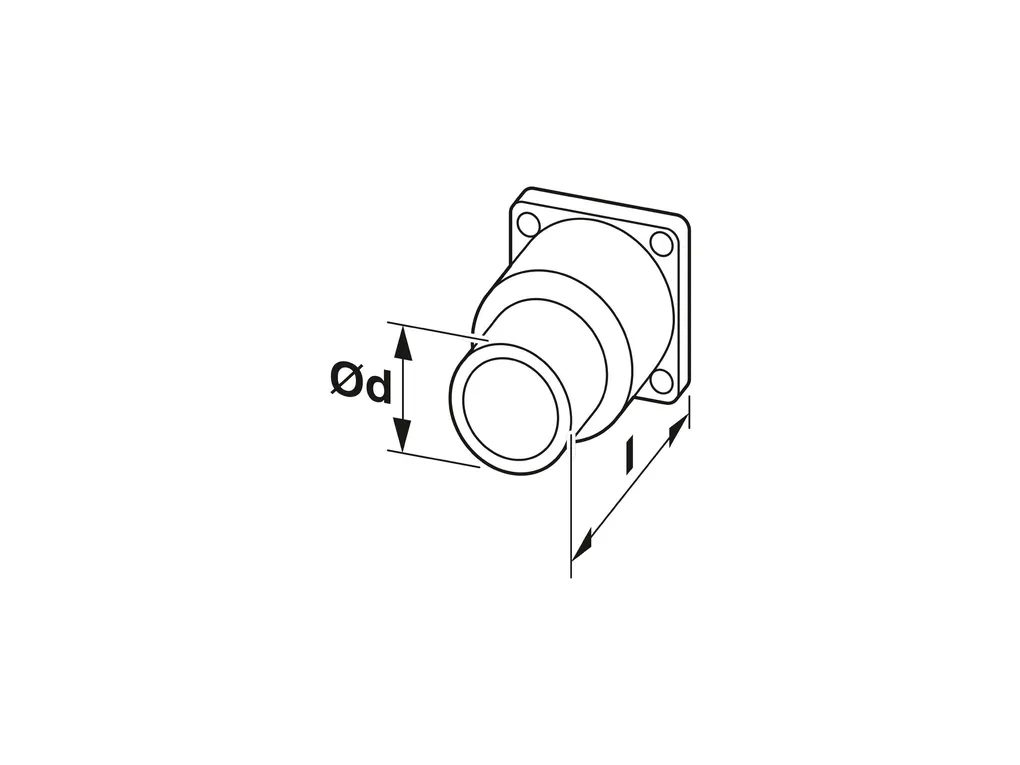

PHOENIX CONTACT 1425589
PHOENIX CONTACTNon disponibile

SACC-DSI-M12FSL-4CON-M16XL/0,2 - Device connector, rear mounting

Device connector, rear mounting, Power, 4-position, Socket, straight, M12-Standard, coding: L, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm2, PEX litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239520
Cod. Articolo: 1425589
Cod. Fornitore: 1425589
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Lock nut is included in the scope of delivery
MountingMounting type: Rear mounting M16 x 1.5 With flat nut, tightening limitation
Assembly instructions: With flat nut, tightening limitation
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Power
Number of positions: 4
No. of cable outlets: 1
Shielded: no
Coding: L
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA
Material for screw connection: Zinc die-cast, nickel-plated
Conductor material: Tin-plated Cu litz wires
Electrical propertiesRated surge voltage: 1.5 kV
1.5 kV AC/DC
Nominal voltage UN: 63 VDC
Nominal current IN: 16 A
Test voltage: 1.5 kV
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 2.5 mm²
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: Standard
Coding: L
Connection 2
Head design: free cable end
Cable/lineCable length: 0.2 m
Cable type: PEX litz wire
Signal type/category: Power
Single wire, color: brown 1, white 2, blue 3, black 4
Cable cross section: 2.5 mm²
Conductor material: Tin-plated Cu litz wires
AWG signal line: 14
Material wire insulation: PE-X
Halogen-free: according to IEC 60754-1
Flame resistance: in acc. with UL FT-2
Ambient temperature (operation): -40°C ... 85°C (without mechanical actuation)
-25°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 105°C (Cable, flexible installation)
-40°C ... 105°C (cable, fixed installation)
Standards and regulationsFlame resistance: in acc. with UL FT-2
M12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-111
Note: In line with
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Descrizione
Flush-type connector, Power, 4-position, Socket, M12, L - Power, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 2.50 mm², PEX litz wire
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00572.pdf

Design-In_00014.pdf

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_08394.pdf

Package_slip_02212.pdf

Technical_drawing_09743.pdf
