PHOENIX CONTACT 1425630
PHOENIX CONTACTNon disponibile

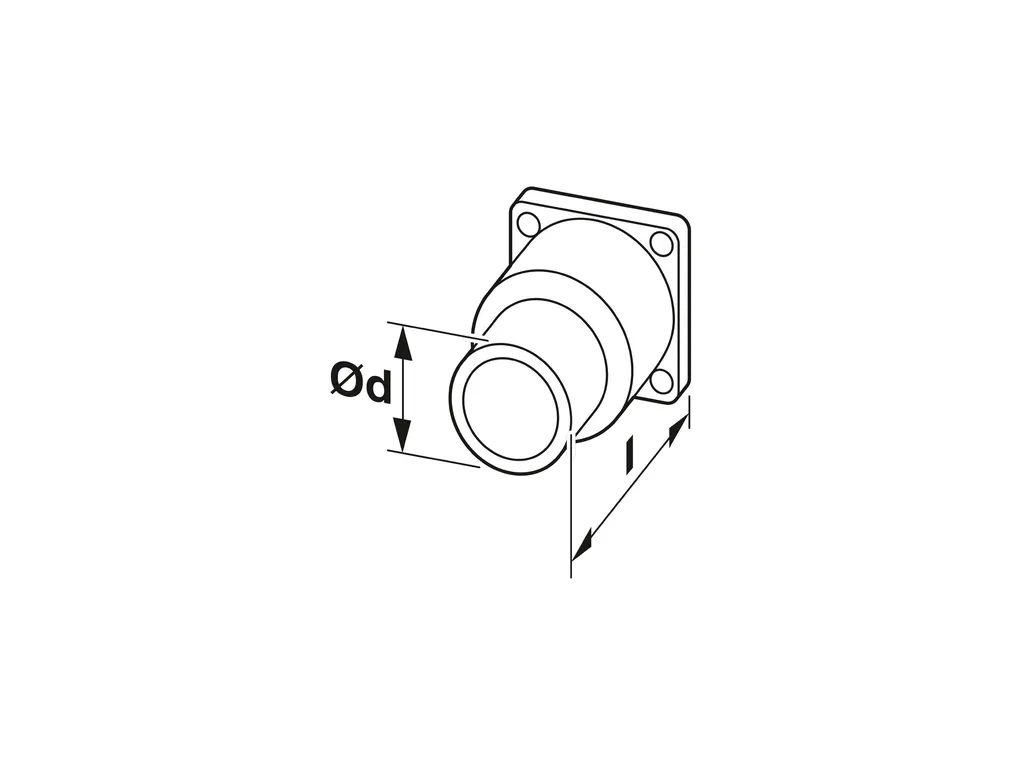

SACC-DSI-M12FSL4FEM16/0,2GR-1,5 - Device connector, rear mounting

Device connector, rear mounting, Power, 5-position, Socket, straight, M12-Standard, coding: L, on free cable end, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm2, UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239544
Cod. Articolo: 1425630
Cod. Fornitore: 1425630
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
FE not connected to metal parts that can be touched, no protective function
Lock nut is included in the scope of delivery
Contact connection method: Crimp connection
MountingMounting type: Rear mounting M16 x 1.5
Assembly instructions: Tightening limitation
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Power
Number of positions: 5
No. of cable outlets: 1
Shielded: no
Coding: L
Thread type: M12
Insulation characteristics
Overvoltage category: III
Degree of pollution: 3
Material specificationsColor: gray
Flammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA
Material for screw connection: Zinc die-cast, nickel-plated
Conductor material: Bare Cu litz wires
Electrical propertiesRated voltage in acc. with IEC 61076-2-101: 63 V
Rated surge voltage: 1.5 kV
1.5 kV AC/DC
Nominal voltage UN: 63 VDC
Nominal current IN: 12 A
Test voltage: 1.5 kV
Test voltage Core/Core: 3 kV
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Socket
Conductor cross section: 1.31 mm²
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Socket
Head cable outlet: straight
Head thread type: M12
Head locking type: Standard
Coding: L
Connection 2
Head design: free cable end
Cable/lineCable length: 0.2 m
Cable type: UL/cUL stranded hook-up wire
Signal type/category: Power
Wire diameter incl. insulation: 2 mm
Single wire, color: brown 1, white 2, blue 3, black 4, pink FE
Cable cross section: 1.31 mm²
Conductor material: Bare Cu litz wires
AWG signal line: 16
Material wire insulation: mPPE
Test voltage Core/Core: 3 kV
Halogen-free: yes
Flame resistance: in acc. to UL1581 VW1
Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation)
-25°C ... 105°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 105°C (Cable, flexible installation)
-40°C ... 105°C (cable, fixed installation)
Standards and regulationsFlame resistance: in acc. to UL1581 VW1
M12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-111
Note: In line with
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Descrizione
Flush-type connector, Power, 5-position, Socket, M12, L - Power, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm², UL/cUL stranded hook-up wire
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00572.pdf

Design-In_00014.pdf

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_08405.pdf

Package_slip_02212.pdf

Technical_drawing_15464.pdf
