PHOENIX CONTACT 1429059
PHOENIX CONTACTNon disponibile

SACCBP-M12MS-6CON-M16/0,5-970 - Device connector, rear mounting

Device connector, rear mounting, 8-position, SANTOPRENE halogen-free, black RAL9005, shielded, Pin, straight, M12, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, 0.25 mm2, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239591
Cod. Articolo: 1429059
Cod. Fornitore: 1429059
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
MountingMounting type: Rear mounting M16 x 1.5 With flat nut
Assembly instructions: With flat nut
Connection method: Cable connection
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 8
No. of cable outlets: 1
Shielded: yes
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: FKM
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Brass, nickel-plated
Outer sheath, material: SANTOPRENE halogen-free
Electrical propertiesRated surge voltage: 0.8 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Connection dataConductor connection
Connection method: Cable connection
Contact connection type: Pin
Conductor cross section: 0.25 mm²
Tightening torque: 2 Nm
3 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 0.5 m
VARAN[970]

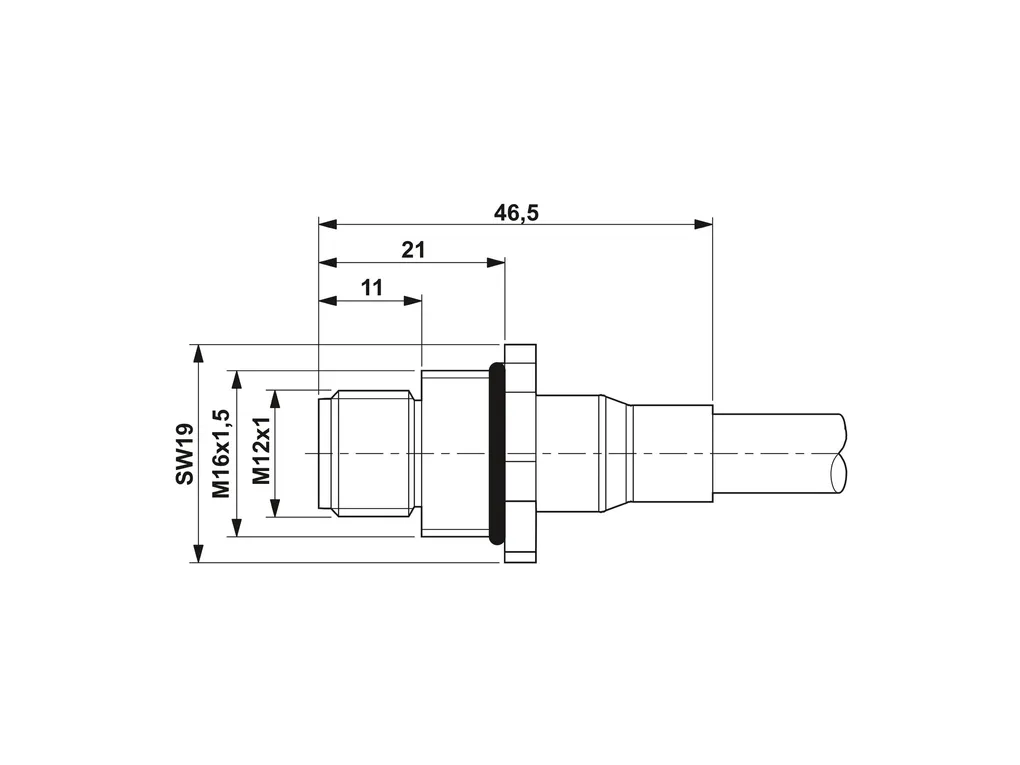

Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4987438ba5ff14418742a25b75ff659b/-S204x204-FJPG
Cable weight: 81 kg/km
Number of positions: 6
Shielded: yes
Cable type: VARAN[970]
Conductor structure: 1x2xAWG22/19 + 1x4xAWG24/19
Conductor structure signal line: 19x 0.13 mm
AWG signal line: 24
Conductor cross section: 4x 0.25 mm² (Signal line)
2x 0.38 mm² (Power supply)
Wire diameter incl. insulation: 1.35 mm (Signal line)
1.5 mm (Power supply)
External cable diameter: 7.8 mm ±0.2mm
Outer sheath, material: SANTOPRENE halogen-free
External sheath, color: black RAL9005
Conductor material: Bare Cu litz wires
Material, filler: Yarn
Material wire insulation: PP
Single wire, color: brown, blue, white/orange, white/green, green, orange
Type of pair shielding: Tinned copper braided shield, 95 % covering
Overall twist: 1 star quad and 2 wires with 2 fillers
Max. conductor resistance: 77 Ω/m (Data cable)
Insulation resistance: 5 GΩ*km (Data cable)
Wave impedance: 100 Ω ±15%
Working capacitance: 50 nF (Data cable)
Nominal voltage, cable: 125 V (Data cable)
48 V (Power supply)
Test voltage: 2000 V (Power supply)
max. 700 VAC (Data cable)
Smallest bending radius, fixed installation: ≥ 93 mm
Smallest bending radius, movable installation: ≥ 93 mm
Max. bending cycles: 3000000
Halogen-free: in accordance with DINEN50267-2-1
Ambient temperature (operation): -20°C ... 80°C (Cable)
Ambient temperature (installation): 0°C ... 50°C
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
-25°C ... 85°C (Cable, flexible installation)
-40°C ... 85°C (cable, fixed installation)
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Descrizione
Bus system flush-type plug, VARAN, 6-pos., M12, shielded, rear/screw mounting with M16 thread, with 0.5 m bus cable
