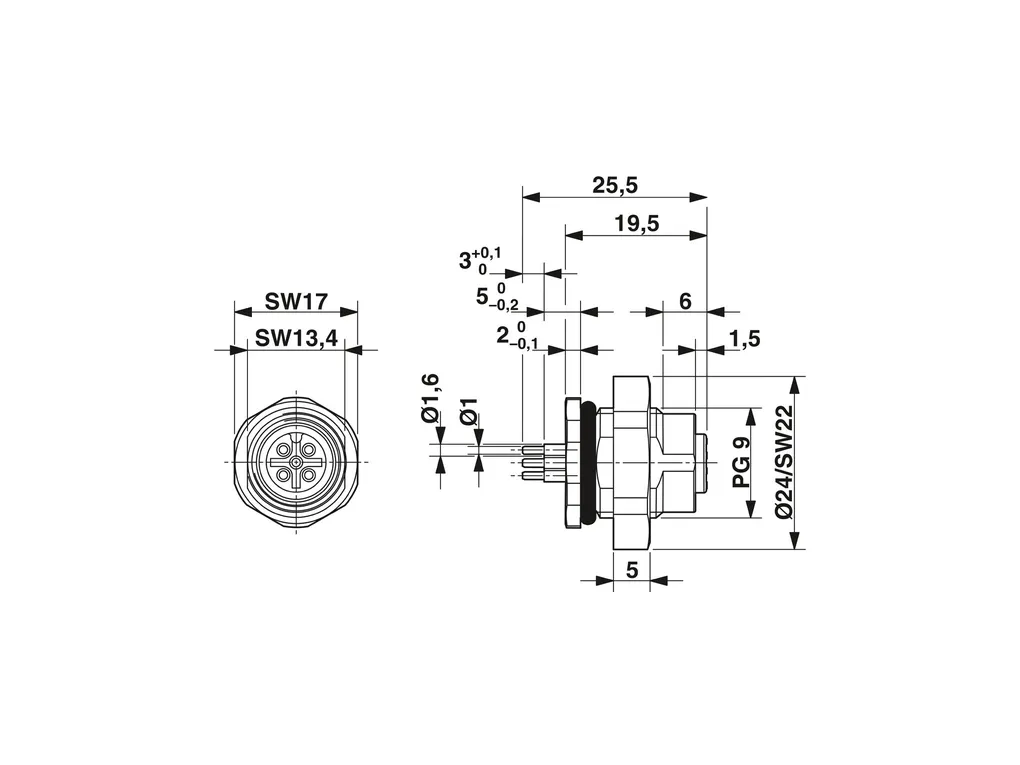

SACC-DSI-M12FS-5CON-L180P - Device connector, rear mounting

Sensor/actuator flush-type connector, socket, 5-pos., M12, A-coded, rear/screw mounting with Pg9 thread, with straight solder connection, plastic version

Cod. Articolo: 1436330

Cod. Fornitore: 1436330

PHOENIX CONTACT

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Mounting	Mounting type: Rear mounting Pg9 With locking nut Assembly instructions: With locking nut Connection method: Wave soldering
Product properties	Product type: Circular connectors (device side) Number of positions: 5 Shielded: no Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Color: black Flammability rating according to UL 94: HB Seal material: Viton Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: PA 6.6
Electrical properties	Rated surge voltage: 1.5 kV Contact resistance: Ã¢¤ 3 mÃ© Insulation resistance: Ã¢¥ 100 MÃ© Nominal voltage U_N: 60 V Nominal current I_N: 4 A Max. conductor resistance: 57.6 mÃ©/m
Connection data	Conductor connection Connection method: Wave soldering Contact connection type: Socket Conductor cross section: 0.34 mm² Tightening torque: 1.25 Nm 1.5 Nm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: A
Cable/line	Wire diameter incl. insulation: 1.2 mm ±0.07mm Cable cross section: 0.34 mm² Conductor structure signal line: 7x 0.25 mm Thickness, insulation: 0.21 mm Nominal voltage, cable: 300 V Test voltage, cable: 2000 VAC Cable resistance: Ã¢¤ 57.6 mÃ©/m Cable insulation resistance: Ã¢¥ 20 MÃ©*km Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
