| Notes | General: Lock nut is included in the scope of delivery |

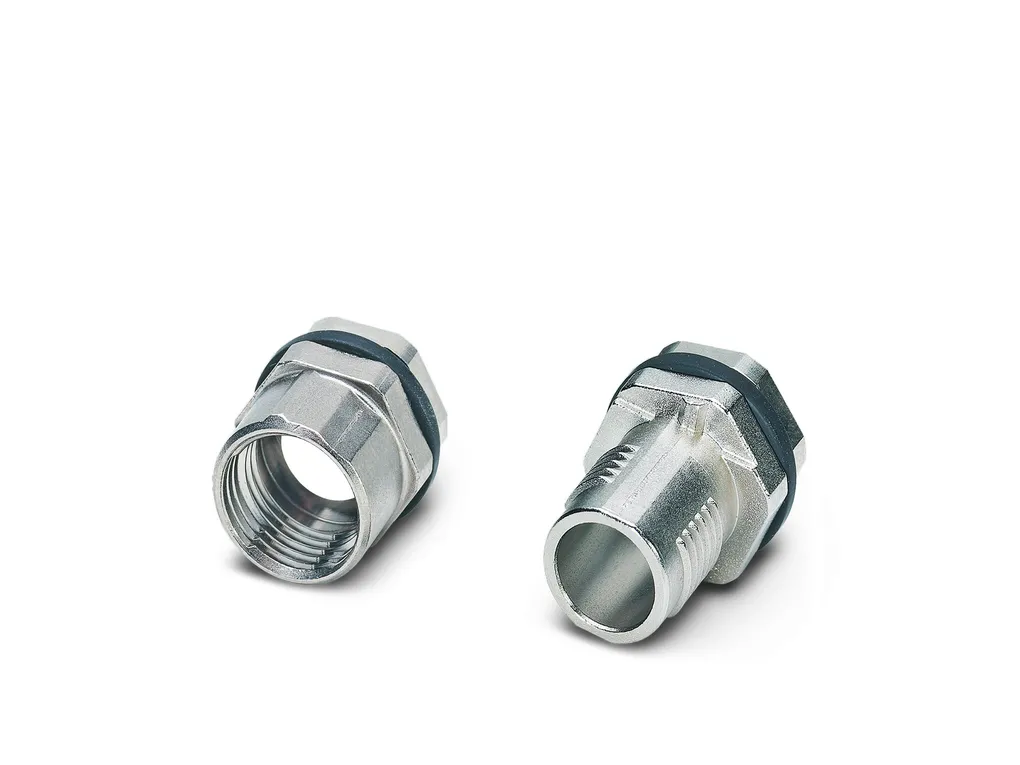

| Product properties | Product type: Panel mounting base Thread type: M12 |
| Material specifications | Material: Zinc die-cast (nickel-plated) Seal material: FKM |
| Cable/line | Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation) |
| Environmental and real-life conditions | Ambient conditions Degree of protection (when plugged in): IP67 (correctly plugged in and locked) Degree of protection: IP67 (correctly plugged in and locked) Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation) |
| Standards and regulations | M12 Standards/specifications: IEC 61076-2-101 |
| Mounting | Mounting type: Front mounting M12 x 1 |
| ECLASS | ECLASS-11.0: 27440224 ECLASS-12.0: 27440224 ECLASS-13.0: 27440224 |
| ETIM | ETIM 9.0: EC003556 |
| UNSPSC | UNSPSC 21.0: 39121400 |
