SACC-DSI-MS-12CON-L180 SCO SH - Device connector, rear mounting

Device connector, rear mounting, 12-position, Pin, straight, M12-SPEEDCON, coding: A, Rear mounting, Pg9, Solder pins, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239634

Cod. Articolo: 1436783

Cod. Fornitore: 1436783

PHOENIX CONTACT

Notes	General: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. Lock nut is included in the scope of delivery
Mounting	Mounting type: Rear mounting Pg9 With flat nut Assembly instructions: With flat nut Connection method: Solder pins
Product properties	Product type: Circular connectors (device side) Number of positions: 12 Shielded: yes Coding: A Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3

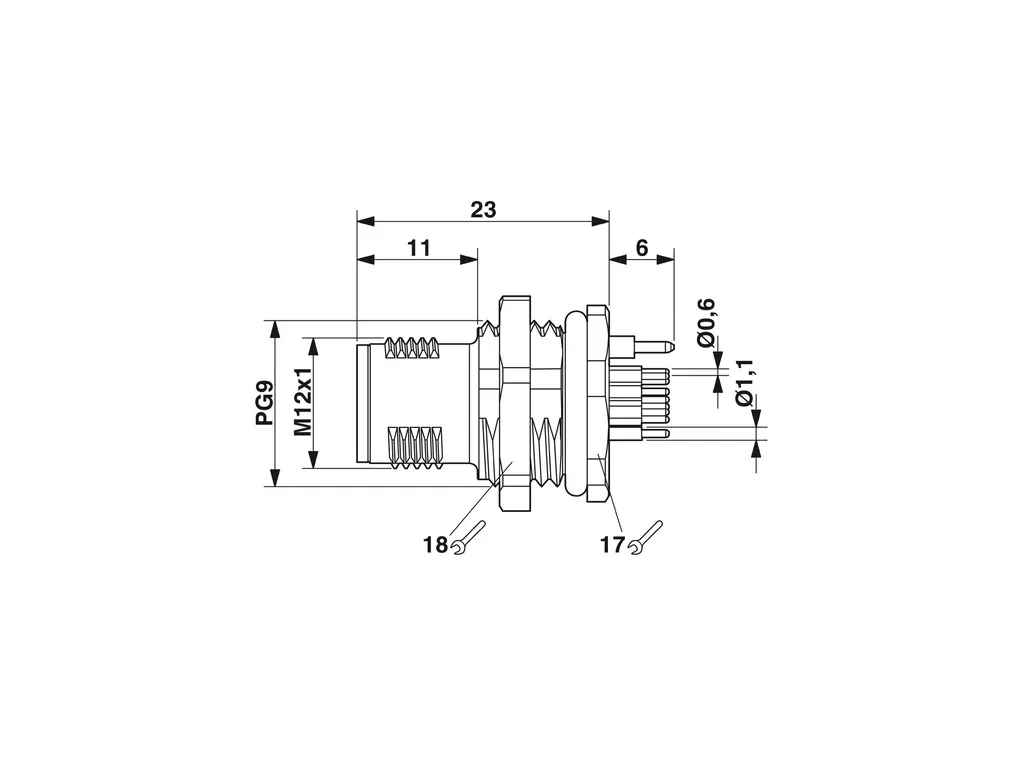

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/17c42fd2a8a881498f6c7a33c6df14c6/-S204x204-FJPG Length of the solder pin: 6 mm
Material specifications	Flammability rating according to UL 94: V0 Seal material: FKM Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Rated surge voltage: 0.8 kV Contact resistance: Ã¢¤ 3 mÃ© Insulation resistance: Ã¢¥ 100 MÃ© Nominal voltage U_N: 30 V Nominal current I_N: 1.5 A
Connection data	Conductor connection Connection method: Solder pins Contact connection type: Pin Tightening torque: 2 Nm 3 Nm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: > 100
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: A
Cable/line	Ambient temperature (operation): -40°C ... 85°C (cable, fixed installation) -25°C ... 85°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 (When plugged in) IP65 (When plugged in) IP65/IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) -40°C ... 85°C (without mechanical actuation) -25°C ... 85°C (Cable, flexible installation) -40°C ... 85°C (cable, fixed installation)
Standards and regulations	M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
