| Notes | General: Lock nut is included in the scope of delivery |
| Mounting | Mounting type: Rear mounting Connection method: THR solder connection |

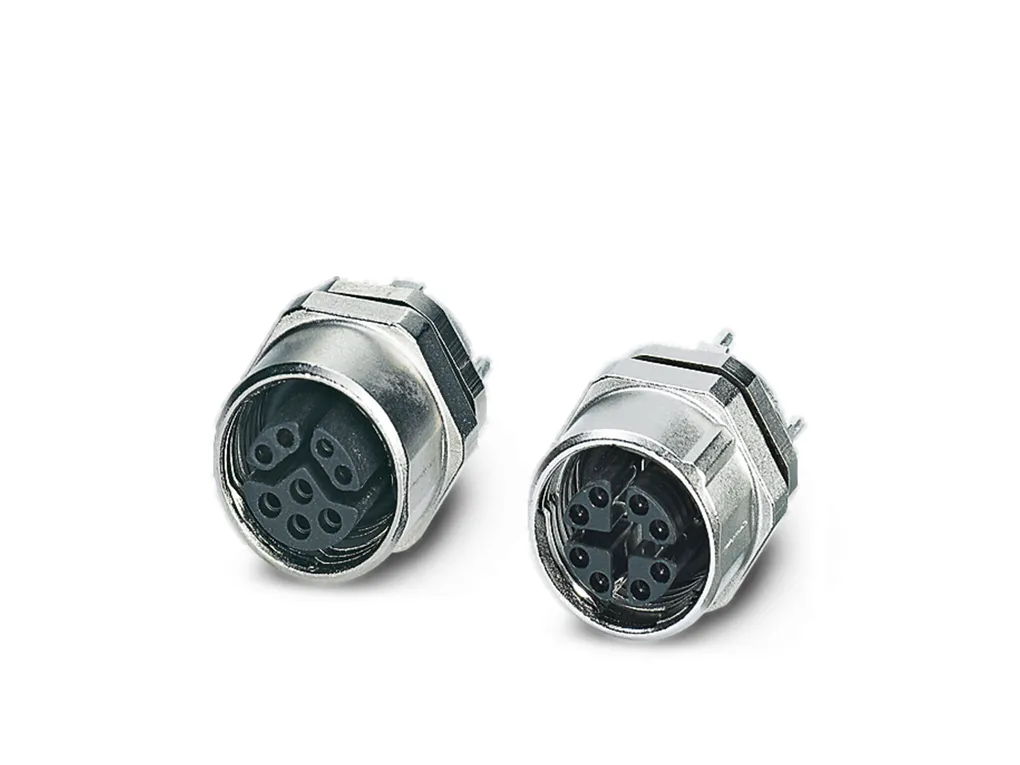

| Product properties | Product type: Circular connectors (device side) Number of positions: 8 Shielded: no Coding: X Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Material: Zinc die-cast (nickel-plated) Flammability rating according to UL 94: HB Seal material: NBR Contact material: Cu alloy Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Electrical properties | Contact resistance: < 5 mé Insulation resistance: > 100 Mé Nominal voltage UN: 60 V Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: THR solder connection Contact connection type: Socket |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Head locking type: SPEEDCON Coding: X |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 9.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
