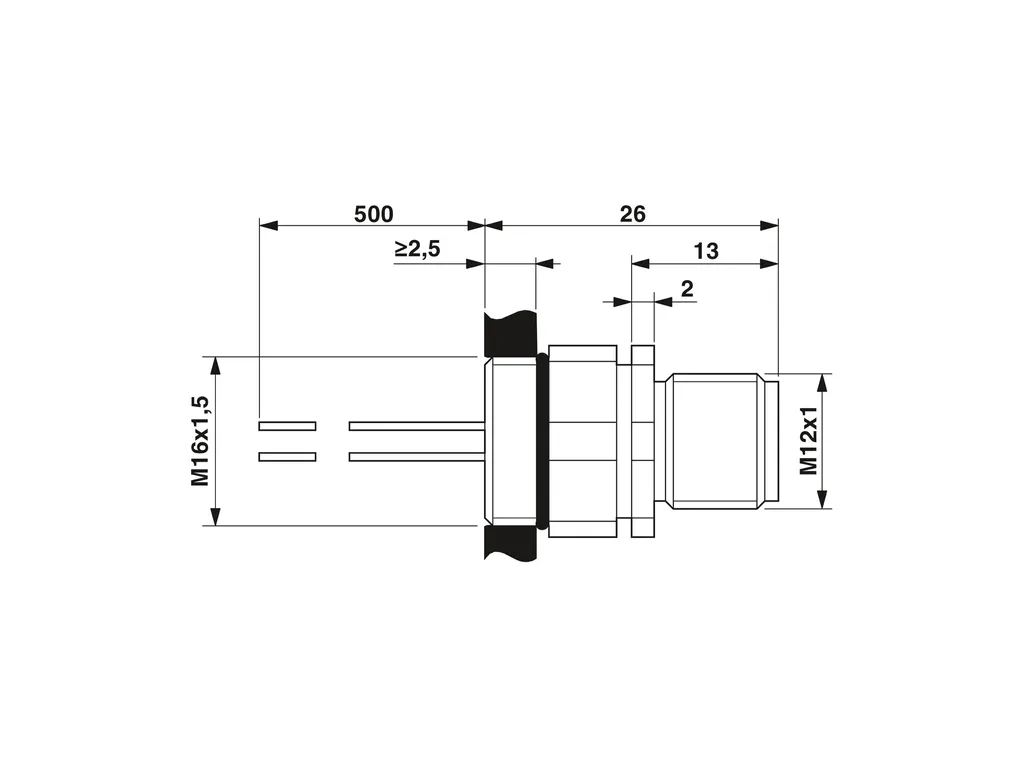

SACC-EC-MS-8CON-M16/2,0 SCO - Device connector front mounting

Device connector front mounting, 8-position, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Front mounting, Individual wires, cable length: 2 m, 0.25 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239792
Cod. Articolo: 1446388
Cod. Fornitore: 1446388
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: Lock nut is included in the scope of delivery
Contact connection method: Crimp connection
MountingMounting type: Front mounting
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 8
No. of cable outlets: 1
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 6.6
Material for screw connection: Zinc die-cast, nickel-plated
Conductor material: Tin-plated Cu litz wires
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Max. conductor resistance: 80 mΩ/m
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Pin
Conductor cross section: 0.25 mm²
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Head locking type: SPEEDCON
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 2 m
Cable type: TPE litz wire
Wire diameter incl. insulation: 1.15 mm ±0.07mm
Single wire, color: brown, blue, white, gray, pink, green, yellow, red
Cable cross section: 0.25 mm²
Conductor material: Tin-plated Cu litz wires
Conductor structure signal line: 14x 0.15 mm
AWG signal line: 24
Material wire insulation: TPE
Thickness, insulation: 0.21 mm (Core insulation)
Nominal voltage, cable: 300 V
Test voltage, cable: 2000 VAC
Cable resistance: ≤ 80 mΩ/m
Cable insulation resistance: ≥ 20 MΩ*km
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-25°C ... 90°C (cable, fixed installation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
