| Mounting | Mounting type: Rear mounting |

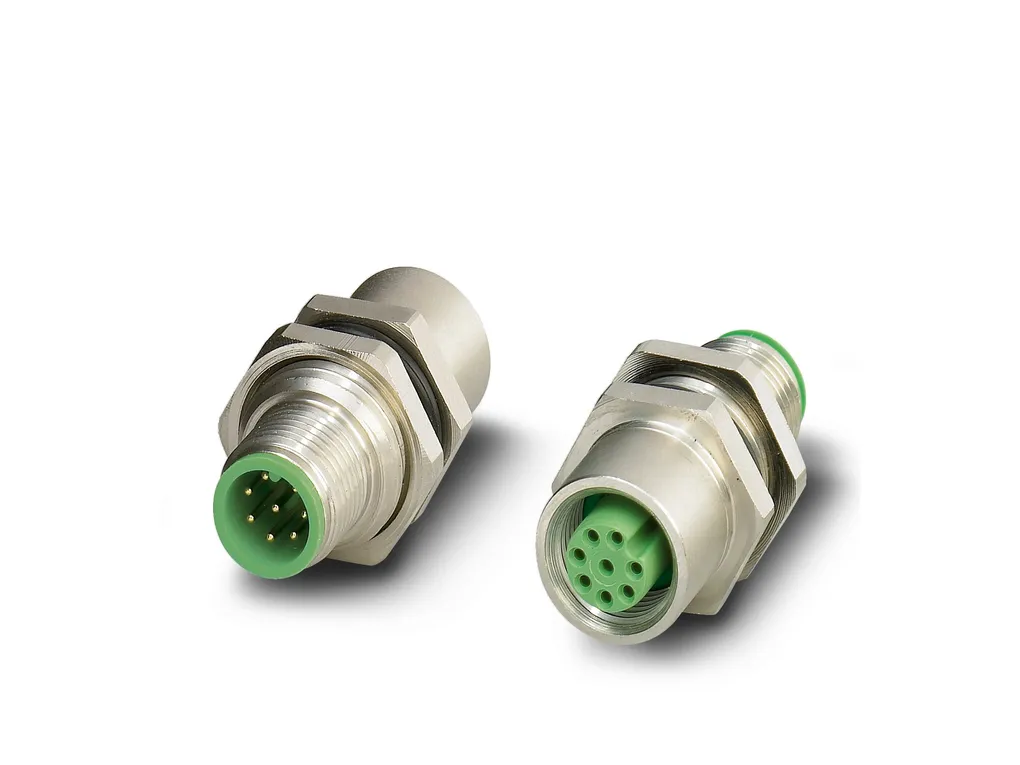

| Product properties | Product type: Circular connectors (device side) Number of positions: 8 Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: HB Seal material: FPM Contact material: CuZn Contact surface material: Au Contact carrier material: PA 6.6 Material for screw connection: Brass, nickel-plated |
| Electrical properties | Contact resistance: ⤠3 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 24 V Nominal current IN: 1.5 A |
| Connector | Connection 1 Head design: Pin Head cable outlet: straight Head thread type: M12 Coding: A Connection 2 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: A |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-13.0: 27440116 |
| ETIM | ETIM 8.0: EC002943 |
| UNSPSC | UNSPSC 21.0: 39121400 |
