SACB-8/16-SC SCO P - Distributor box

Distributor box, application: Standard, connection method: M12-SPEEDCON-socket Plastic, number of slots: 8, number of positions: 5, coding: A, slot assignment: Double, status display: No, Universal; master cable connection: Spring-cage connection 180°, shielding: no

Cod. Articolo: 1452974

Cod. Fornitore: 1452974

PHOENIX CONTACT

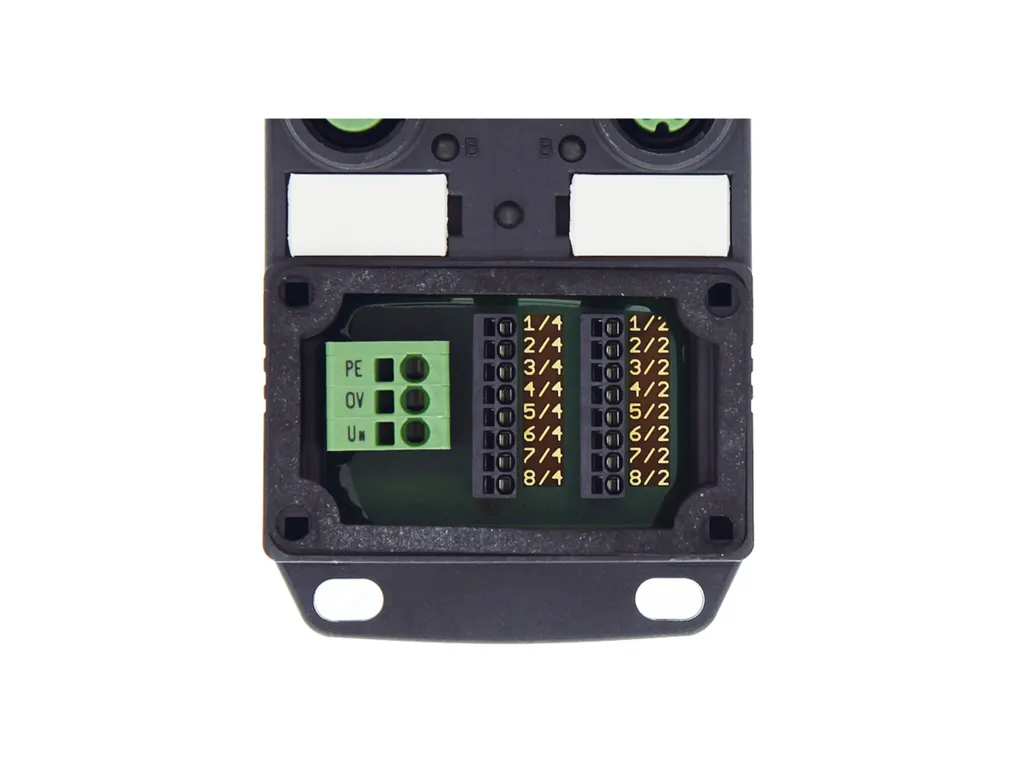

Notes	General: When connecting the signal lines to the black PCB terminal blocks, please use a 0.4 x 2.0 mm screwdriver. The black PCB terminal blocks only require a minimal amount of operating force. Screwdriver: SZS 0,4X2,0 - 1205202 Using larger screwdrivers or excessive force may damage the PCB terminal blocks. When using ferrules, the wires can be inserted straight into the PCB terminal blocks without opening the clamping area. NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories".
Product properties	Product type: Distributor boxes with M8 to M12 slots Number of positions: 5 Application: Standard Number of slots: 8 Coding: A LED: No
Material specifications	Material: PBT PUR Flammability rating according to UL 94: V0 Seal material O-ring: NBR Contact material: Cu alloy Contact surface material: gold-plated Contact carrier material: PA
Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/891f30ddee25814d908830053792a739/-S204x204-FJPG Width: 54 mm Height: 42 mm Length: 149 mm
Connection data	Conductor connection Connection method: Spring-cage connection Stripping length: 6 mm 10 mm Conductor cross section Flexible signal line: 0.2 mm² ... 0.5 mm² Conductor cross section Flexible power supply: 0.2 mm² ... 1.5 mm² Connection cross section AWG Flexible signal line: 24 ... 20 Connection cross section AWG Flexible power supply: 24 ... 16 Tightening torque, cover screw: 1 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=WH 1 / 2 (B)=GYPK 2 / 4 (A)=GN 2 / 2 (B)=RDBU 3 / 4 (A)=YE 3 / 2 (B)=WHGN 4 / 4 (A)=GY 4 / 2 (B)=BNGN 5 / 4 (A)=PK 5 / 2 (B)=WHYE 6 / 4 (A)=RD 6 / 2 (B)=YEBN 7 / 4 (A)=BK 7 / 2 (B)=WHGY 8 / 4 (A)=VT 8 / 2 (B)=GYBN 1-8 / 1 (+ 120 V)=BN 1-8 / 3 (0 V)=BU 1-8 / 5 (PE)=GNYE
Signaling	Status display present: No
Electrical properties	Nominal voltage U_N: 120 VAC 120 VDC Rated current, total: 12 A Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A
Cable/line	Sensor/actuator connection system: M12-SPEEDCON-socket Connection method: Spring-cage connection External cable diameter: 7 mm ... 12 mm Stripping length (signal): 6 mm Stripping length (power): 10 mm Stripping length for sheath: 50 mm (Master cable) Tightening torque, cover screw: 1 Nm Tightening torque of mounting screw for fixing the housing: 0.5 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm Tightening torque, union nut: 2.5 Nm
Standards and regulations	Standard designation: M12 connector Standards/specifications: IEC 61076-2-101
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -25°C ... 80°C
