| Product properties | Type: RJ45 Version14 Product type: Data connector (cable side) Sensor type: VARAN Number of positions: 2 Shielded: no Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) Transmission medium: Copper Transmission characteristics (category): CAT5 Transmission speed: 100 Mbps |
| Connection data | Connection technology Connection method: IDC fast connection |

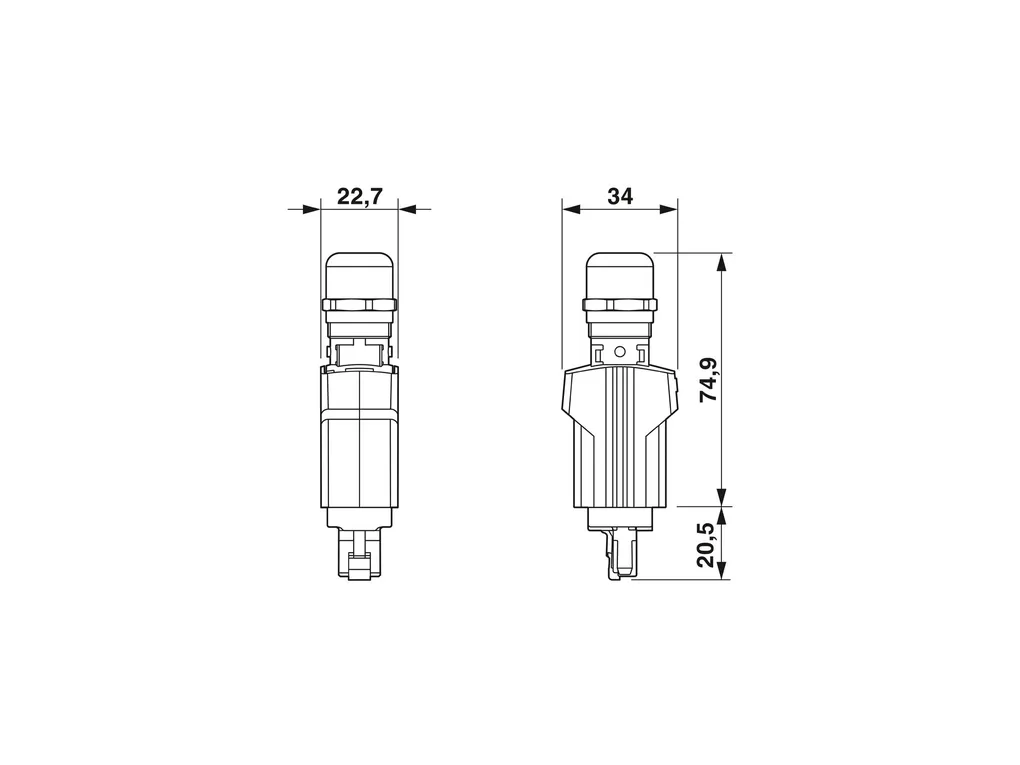

| Dimensions | Width: 22.4 mm Height: 34 mm Length: 95 mm |
| Material specifications | Flammability rating according to UL 94: V0 Housing surface material: nickel-plated Housing material: Metal |
| Cable/line | External cable diameter (): 5.5 mm ... 10 mm External cable diameter: 5.5 mm ... 10 mm Cable cross section: 0.14 mm² |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65/IP67 Ambient temperature (operation): -40°C ... 70°C |
| Standards and regulations | Standards/specifications: IEC PAS61076-3-117 |
| Mounting | Connection method: IDC fast connection |
| ECLASS | ECLASS-11.0: 27440390 ECLASS-13.0: 27440390 ECLASS-12.0: 27440390 |
| ETIM | ETIM 8.0: EC000034 |
| UNSPSC | UNSPSC 21.0: 26121600 |
