| Notes | General: Lock nut is included in the scope of delivery |
| Mounting | Mounting type: Rear mounting Pg9 With locking nut Assembly instructions: With locking nut Connection method: Solder pins |

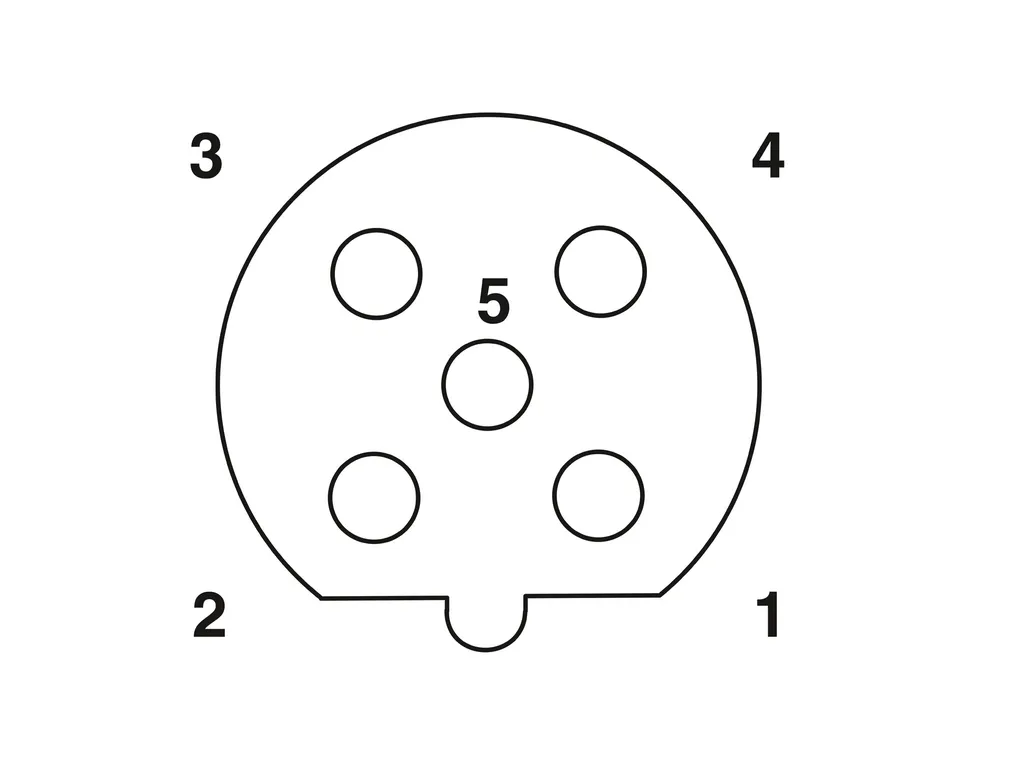

| Product properties | Product type: Circular connectors (device side) Number of positions: 5 Shielded: no Coding: B Thread type: M12 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR Contact material: CuZn Contact surface material: Au Contact carrier material: PBT Material for screw connection: Brass, nickel-plated |
| Electrical properties | Contact resistance: ⤠0.003 é Insulation resistance: ⥠1 Té Nominal voltage UN: 60 V Nominal current IN: 4 A |
| Connection data | Conductor connection Connection method: Solder pins Contact connection type: Socket |
| Connector | Connection 1 Head design: Socket Head cable outlet: straight Head thread type: M12 Coding: B |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 9.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
