PHOENIX CONTACT 1529629
PHOENIX CONTACTNon disponibile

SACCEC-M12MSB-5CON-M16/0,5-900 - Device connector front mounting

Device connector front mounting, INTERBUS (16 Mbps), 5-position, PUR halogen-free, green RAL 6017, shielded, Pin, straight, M12, coding: B, on free cable end, Front mounting, M16 x 1.5, Cable connection, cable length: 0.5 m, INTERBUS, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1239914
Cod. Articolo: 1529629
Cod. Fornitore: 1529629
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Lock nut is included in the scope of delivery
Contact connection method: Crimp connection
Safety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
MountingMounting type: Front mounting M16 x 1.5 With locking nut
Assembly instructions: With locking nut
Connection method: Cable connection
Product propertiesProduct type: Circular connectors (device side)
Sensor type: INTERBUS

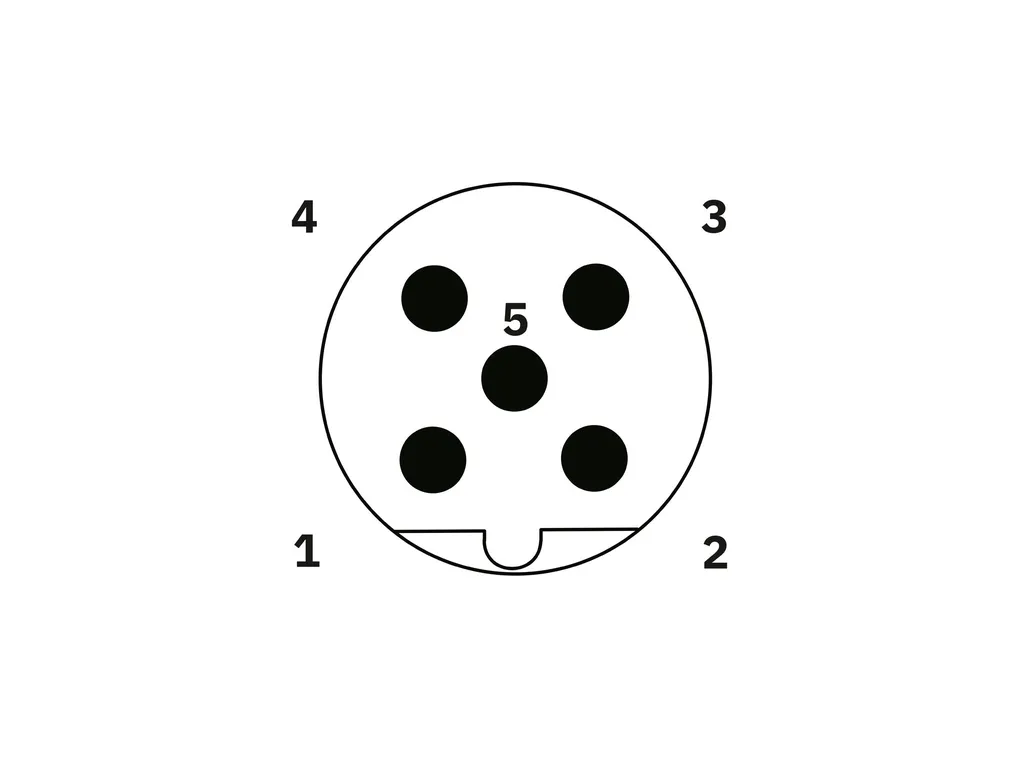

Number of positions: 5
Application: Data
No. of cable outlets: 1
Shielded: yes
Coding: B
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Brass, nickel-plated
Outer sheath, material: PUR
Electrical propertiesRated surge voltage: 1.5 kV
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 48 VAC
60 VDC
Nominal current IN: 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed)
Test voltage: 2500 V
Transmission medium: Copper
Connection dataConductor connection
Connection method: Cable connection
Contact connection type: Pin
Tightening torque: 3 Nm
4 Nm
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: > 100
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Coding: B
Connection 2
Head design: free cable end
Cable/lineCable length: 0.5 m
INTERBUS[900]
Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e9510efa11ce95448a7ed1ffa1fb852c/-S204x204-FJPG
Cable weight: 70 kg/km
Number of positions: 6
Shielded: yes
Cable type: INTERBUS[900]
Conductor structure: 3 x 2 x 0.22 mm²
Signal speed: 0.66 c
Conductor structure signal line: 32x 0.10 mm
AWG signal line: 24
Conductor cross section: 3x 2x 0.22 mm²
External cable diameter: 8 mm
Outer sheath, material: PUR
External sheath, color: may green RAL 6017
Conductor material: Bare Cu litz wires
Material wire insulation: PE
Single wire, color: green-yellow, white-brown, gray-pink
Twisted pairs: 2 cores to the pair
Overall twist: 3 pairs to the core
Insulation resistance: ≥ 5 GΩ*km
Coupling resistance: < 250.00 mΩ/m (at 30 MHz)
Loop resistance: ≤ 159.80 Ω/km
Wave impedance: 120 Ω ±20% (at 64kHz)
100 Ω ±15% (with 1 MHz)
Cable capacity: ≤ 60 nF/km (At 800 Hz)
Nominal voltage, cable: 250 V (Peak value, not for high-power applications)
Test voltage Core/Core: 1500 Vrms
Test voltage Core/Shield: 1000 Vrms
Minimum bending radius, fixed installation: 7.5 x D
Minimum bending radius, flexible installation: 15 x D
Max. bending cycles: 5000000
Near end crosstalk attenuation (NEXT): ≥ 61 dB (at 772kHz)
≥ 59 dB (with 1 MHz)
≥ 55 dB (at 2МHz)
≥ 50 dB (at 4 МHz)
≥ 46 dB (at 8МHz)
≥ 44 dB (at 10 MHz)
≥ 41 dB (at 16 MHz)
≥ 40 dB (at 20МHz)
Shield attenuation: ≤ 15 dB/km (at 256kHz)
≤ 24 dB/km (at 772kHz)
≤ 27 dB/km (with 1 MHz)
≤ 52 dB/km (at 4 МHz)
≤ 84 dB/km (at 10 MHz)
≤ 112 dB/km (at 16 MHz)
≤ 119 dB/km (at 20МHz)
Flame resistance: according to VDE0472, Part 4, test type B
according to IEC 60332-1
Ambient temperature (operation): -40°C ... 80°C (cable, fixed installation)
-30°C ... 70°C (Cable, flexible installation)
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
IP65/IP67
Ambient temperature (operation): -25°C ... 85°C (Plug / socket)
-40°C ... 85°C (without mechanical actuation)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: IEC 61076-2-101
Specifiche
ECLASSECLASS-11.0: 27060311
ECLASS-12.0: 27060311
ECLASS-13.0: 27060311
ETIMETIM 9.0: EC001855
UNSPSCUNSPSC 21.0: 26121600
