SACCBP-M12MSD-4CON-M16/2,0-933 - Device connector, rear mounting

Device connector, rear mounting, PROFINET CAT5 (IEC11801:2002), 4-position, PVC/PVC, green RAL 6018, Pin, straight, M12, coding: D, on free cable end, Rear mounting, M16 x 1.5, Bus line, cable length: 2 m, PROFINET, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240018
Cod. Articolo: 1552366
Cod. Fornitore: 1552366
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesSafety note
Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
• The products are suitable for applications in plant, controller, and electrical device engineering.
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
• Assembled products may not be manipulated or improperly opened.
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
• When using the product in direct connection with third-party manufacturers, the user is responsible.
• For operating voltages > 50V AC, conductive connector housings must be grounded
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
• Observe the corresponding technical data. You will find information:
o On the product
o On the packing label
o In the supplied documentation
o Online at phoenixcontact.com/products under the product
• Only use tools recommended by PhoenixContact
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
• Ensure that the protective or functional ground has been properly connected.
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product propertiesProduct type: Data cable preassembled
Sensor type: PROFINET
Number of positions: 4
No. of cable outlets: 1
Shielded: yes
Coding: D
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
InterfacesSignal type/category: PROFINET CAT5 (IEC 11801:2002)
SignalingStatus display: No
Status display present: No
Electrical propertiesRated surge voltage: 2.5 kV AC
Contact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 250 V
Nominal current IN: 4 A
Transmission medium: Copper
Transmission characteristics (category): CAT5 (IEC 11801:2002)
Max. conductor resistance: 62 Ω/km
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: PA 6.6
Material for screw connection: Brass, nickel-plated
Outer sheath, material: PVC
Conductor material: Tin-plated Cu litz wires
Connection dataConnection technology
Connection method: Bus line
Conductor connection
Contact connection type: Pin
Connection method: Bus line
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Coding: D
Connection 2
Head design: free cable end
Cable/lineCable length: 2 m
PROFINET PVC stranded CAT5[93B]

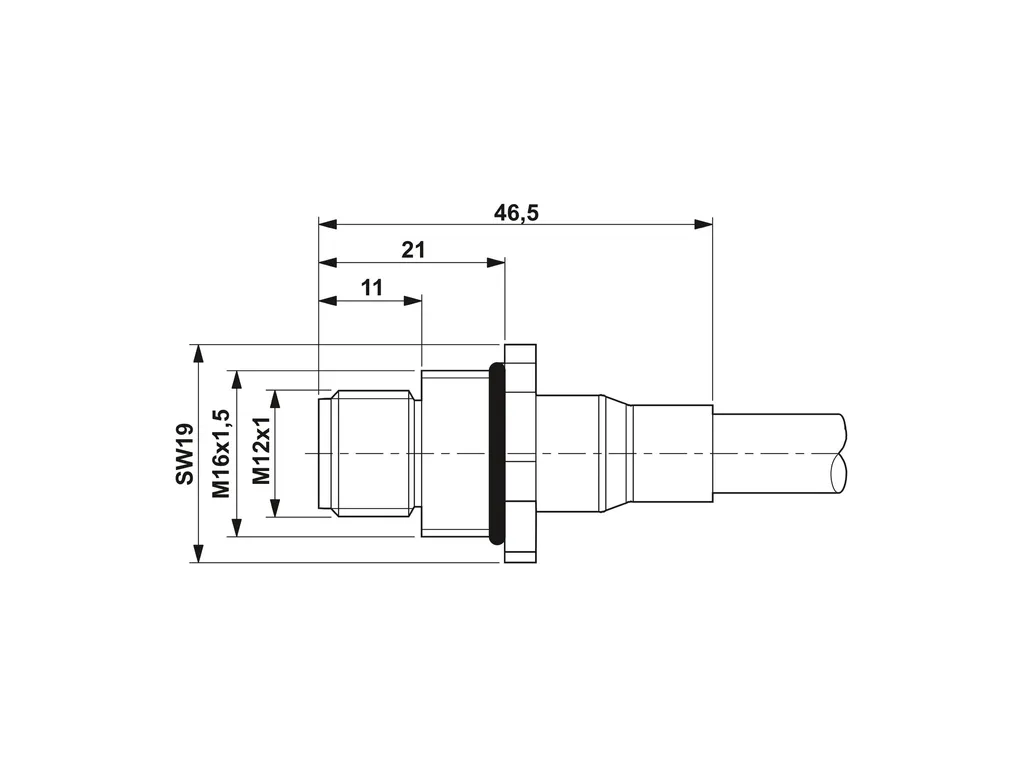

Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9641ad6bfe7a694da352f4faa5bb90c4/-S204x204-FJPG
Cable weight: 67 kg/km
UL AWM Style: 21694
Number of positions: 4
Shielded: yes
Cable type: PROFINET PVC stranded CAT5[93B]
Conductor structure: 1x4xAWG22/7, SF/TQ
Signal runtime: 5.3 ns/m
Signal speed: 0.66 c
Conductor structure signal line: 7x 0.25 mm
AWG signal line: 22
Conductor cross section: 4x 0.34 mm²
Wire diameter incl. insulation: 1.55 mm
External cable diameter: 6.5 mm ±0.2mm
Outer sheath, material: PVC
External sheath, color: green RAL 6018
Conductor material: Tin-plated Cu litz wires
Material wire insulation: PE
Single wire, color: white, yellow, blue, orange
Thickness, outer sheath: approx. 0.9 mm
Overall twist: Star quad
Optical shield covering: 85 %
Insulation resistance: ≥ 500 MΩ*km
Coupling resistance: ≤ 20.00 mΩ/m (at 10 MHz)
Loop resistance: ≤ 120.00 Ω/km
Wave impedance: 100 Ω ±15Ω (at 100 MHz)
Nominal voltage, cable: 600 V
Test voltage Core/Core: 2000 V (50Hz, 1min.)
Test voltage Core/Shield: 2000 V (50Hz, 1min.)
Minimum bending radius, fixed installation: 3 x D
Minimum bending radius, flexible installation: 7 x D
Smallest bending radius, fixed installation: 20 mm
Smallest bending radius, movable installation: 46 mm
Near end crosstalk attenuation (NEXT): 80 dB (with 1 MHz)
76 dB (at 4 ÃÂÂœHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20ÃÂÂœHz)
60 dB (at 31.25ÃÂÂœHz)
55 dB (at 62.5ÃÂÂœHz)
50 dB (at 100 MHz)
Shield attenuation: 2.1 dB (with 1 MHz)
4 dB (at 4 ÃÂÂœHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20ÃÂÂœHz)
11.4 dB (at 31.25ÃÂÂœHz)
16.5 dB (at 62.5ÃÂÂœHz)
21.3 dB (at 100 MHz)
Flame resistance: according to UL1685 (CSA FT 4)
Resistance to oil: Resistant to oil to a limited extent
Other resistance: UV resistant According to UL1581, Section 1200
Ambient temperature (operation): -40°C ... 70°C (cable, fixed installation)
-40°C ... 70°C (Cable, flexible installation)
Ambient temperature (installation): -20°C ... 60°C
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67 (When plugged in)
IP65 (When plugged in)
IP65/IP67
Ambient temperature (operation): -25 ... -85 (Plug / socket)
-40°C ... 70°C (fixed routing)
-20°C ... 60°C (Flexibly installed)
Standards and regulationsM12
Standard designation: M12 connector
Standards/specifications: according to IEC 61076-2-101
