PHOENIX CONTACT 1561690
PHOENIX CONTACTNon disponibile

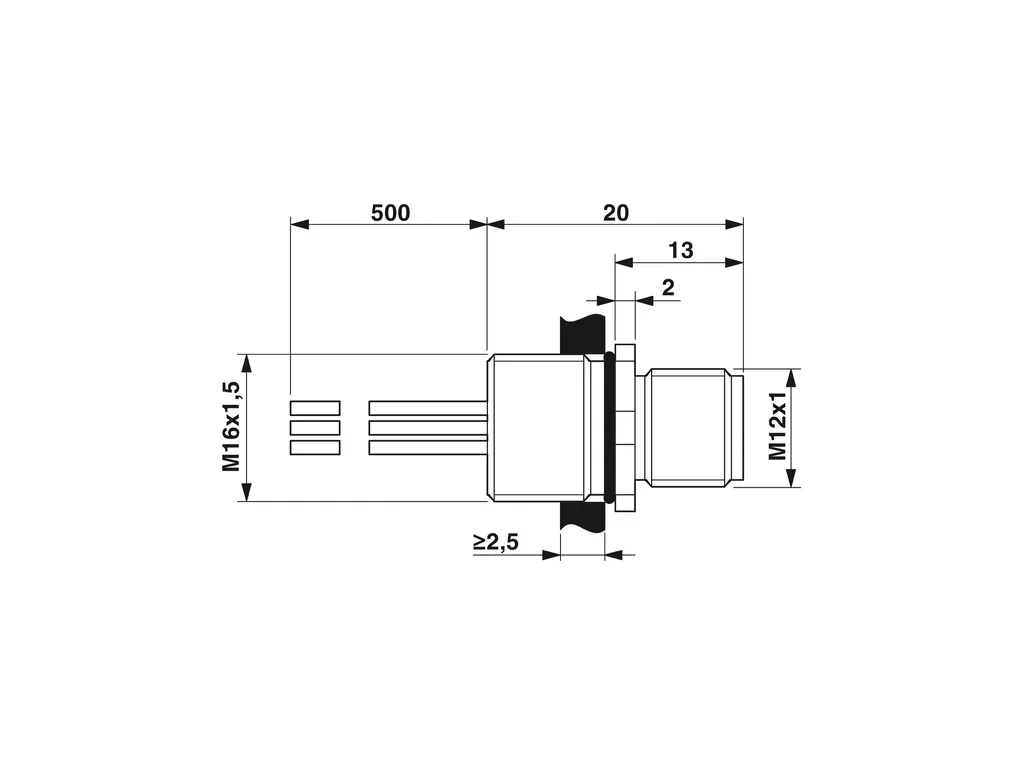

SACC-E-M12MS-8CON-M16/0,1-0,14 - Device connector front mounting

Device connector front mounting, Universal, 8-position, Pin, straight, M12, coding: A, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.1 m, 0.14 mm2, TPE litz wire, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240081
Cod. Articolo: 1561690
Cod. Fornitore: 1561690
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
MountingMounting type: Front mounting M16 x 1.5
Connection method: Individual wires
Product propertiesProduct type: Circular connectors (device side)
Sensor type: Universal
Number of positions: 8
No. of cable outlets: 1
Shielded: no
Coding: A
Thread type: M12
Insulation characteristics
Overvoltage category: II
Degree of pollution: 3
Material specificationsFlammability rating according to UL 94: V0
Seal material: NBR
Contact material: CuZn
Contact surface material: Au
Contact carrier material: PA 66 GF
Material for screw connection: Zinc die-cast, nickel-plated
Conductor material: Tin-plated Cu litz wires
Electrical propertiesContact resistance: ≤ 3 mΩ
Insulation resistance: ≥ 100 MΩ
Nominal voltage UN: 30 V
Nominal current IN: 2 A
Connection dataConductor connection
Connection method: Individual wires
Contact connection type: Pin
Conductor cross section: 0.14 mm²
ConnectorConnection 1
Head design: Pin
Head cable outlet: straight
Head thread type: M12
Coding: A
Connection 2
Head design: free cable end
Cable/lineCable length: 0.1 m
Cable type: TPE litz wire
Signal type/category: Universal
Wire diameter incl. insulation: 1 mm
Single wire, color: brown, blue, white, gray, pink, green, yellow, red
Cable cross section: 0.14 mm²
Conductor material: Tin-plated Cu litz wires
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -25°C ... 90°C (cable, fixed installation)
-25°C ... 85°C (Plug)
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05485.pdf

Manufacturer_declaration_09470.pdf

Technical_drawing_16315.pdf
