PHOENIX CONTACT 1590378
PHOENIX CONTACTNon disponibile

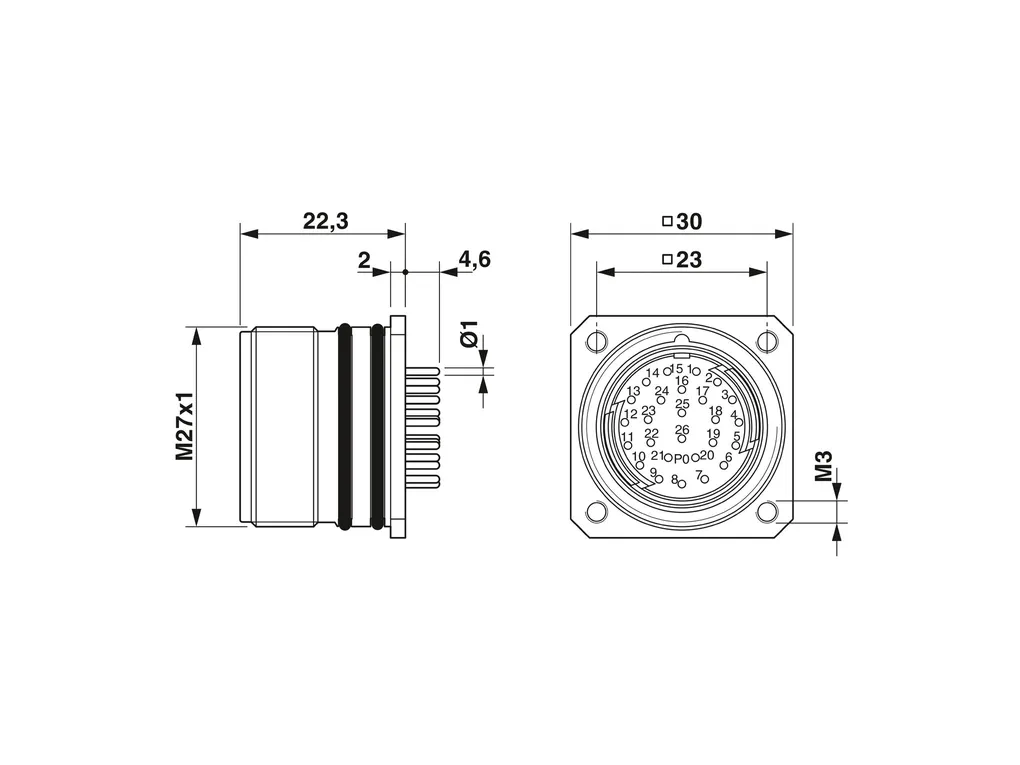

HC-26S1N324100 - Device connector, rear mounting

Device connector, rear mounting, straight, M27, contact connection type: Socket, Flat gasket, 4xM3, degree of protection: IP67, when plugged in, number of positions: 26, connection method: Solder pins
Cod. Articolo: 1590378
Cod. Fornitore: 1590378
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
MountingMounting: 4x M3
Connection method: Solder pins
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 26
Application: Signal
Thread type: M27
Material specificationsFlammability rating according to UL 94: V0
Electrical propertiesContact
Contact diameter: 1 mm
Max. current: 8 A
Nominal voltage UN: 48 VAC 74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Connection dataConductor connection
Connection method: Solder pins
Contact connection type: Socket
ConnectorType: straight
Direction of rotation: Standard
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67, when plugged in
Specifiche
ECLASSECLASS-11.0: 27440109
ECLASS-12.0: 27440109
ECLASS-13.0: 27440109
ETIMETIM 8.0: EC003569
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_09544.pdf
