PHOENIX CONTACT 1592790
PHOENIX CONTACTNon disponibile

RC-0000000C0FZ - Rear panel feed-through

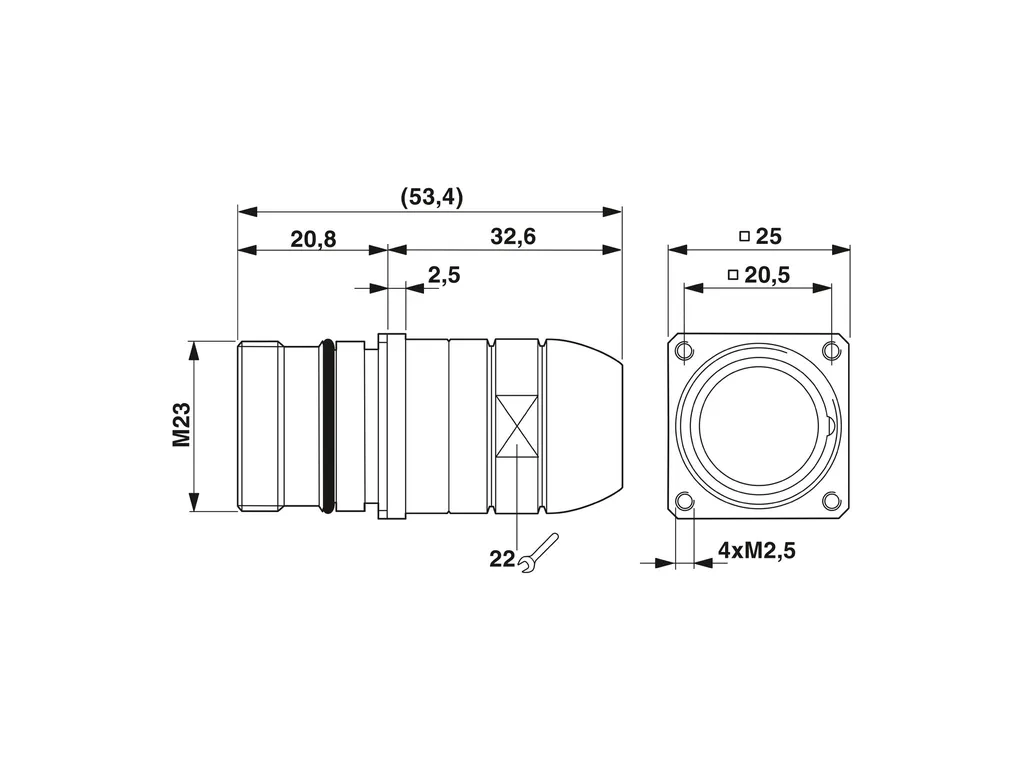

Rear panel feed-through, straight, Screw locking mechanism, M23, Flat gasket, 4x M2.5, shielded: yes, panel thickness max.: 2.5 mm, cable diameter range: 2 mm ... 10.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240281
Cod. Articolo: 1592790
Cod. Fornitore: 1592790
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Panel mounting base
Connection profile: 12
Application: Signal
Series: RC
Shielded: yes
Thread type: M23
Material specificationsSeal material: FPM or NBR or EPDM
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Metal
Gasket and O-ring material: FPM
ConnectorType: straight
Cable/lineExternal cable diameter: 2 mm ... 10.5 mm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -20°C ... 125°C
Altitude: 2000 m
MountingMounting: 4x M2.5
Panel thickness: < 2.5 mm
Connection method: Crimp connection
Specifiche
ECLASSECLASS-11.0: 27440224
ECLASS-12.0: 27440224
ECLASS-13.0: 27440224
ETIMETIM 8.0: EC002641
UNSPSCUNSPSC 21.0: 39121400
