PHOENIX CONTACT 1597357
PHOENIX CONTACTNon disponibile

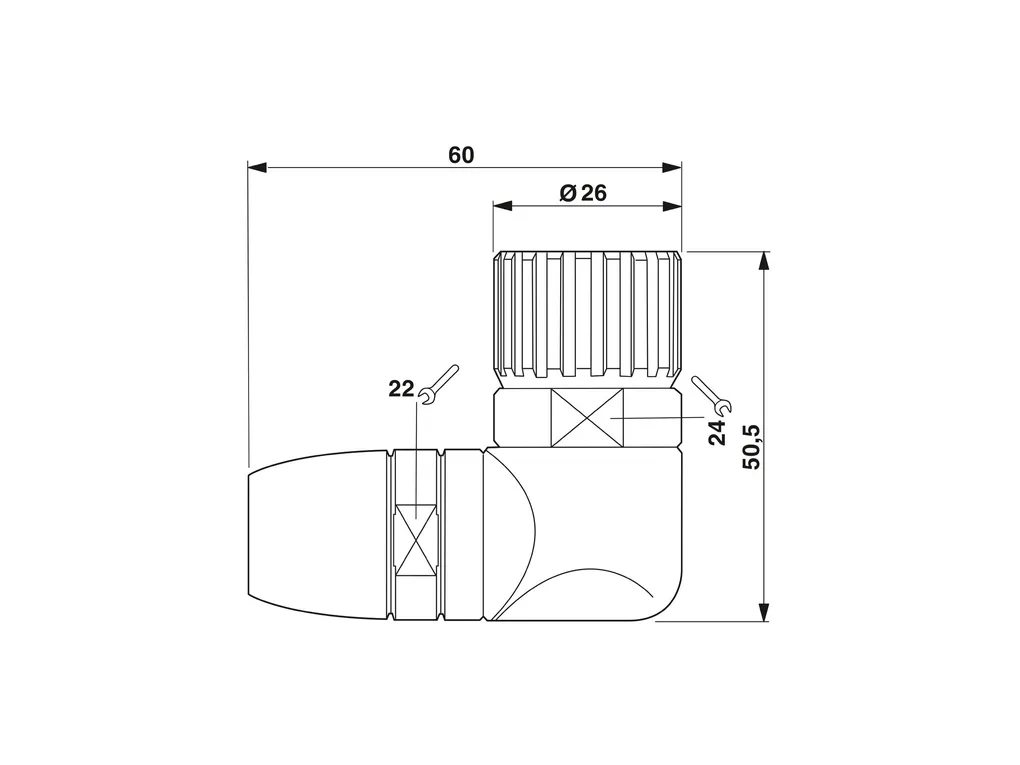

RC-12P1N12T0EM - Cable connector

M23, Cable connector, series: RC, angled, shielded: yes, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 3 mm ... 10.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240822
Cod. Articolo: 1597357
Cod. Fornitore: 1597357
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 100
Connection method: Solder cup
Contact switching type: Pin
Application: Signal
Number of positions: 12
Direction of rotation: Standard
Connection profile: 12
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Seal
External cable diameter: 3 mm ... 10.5 mm
Seal material: NBR
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 8.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
