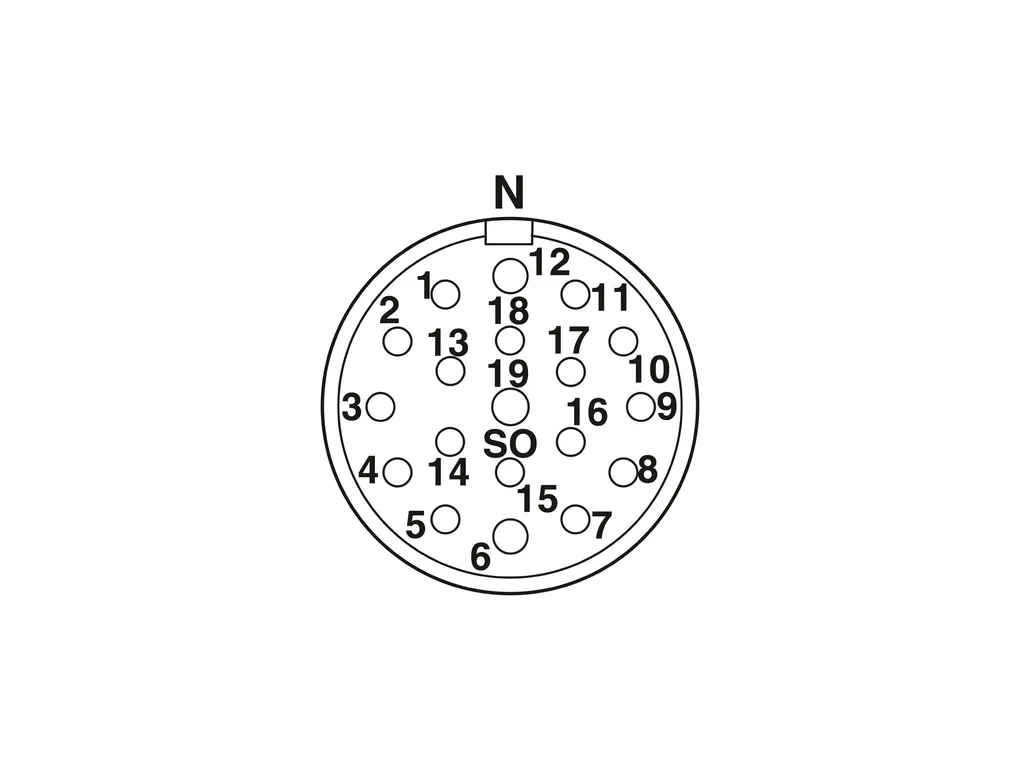

| Product properties | Product type: Contact insert Number of positions: 19 Connection profile: 16+3 Application: Signal Series: NC RC RM TU UC Coding: N Thread type: M23 |
| Electrical properties | Contact Contact diameter: 1.5 mm Min. cross section: 0.08 mm² Max. cross section: 1 mm² Max. current: 10 A Nominal voltage UN: 48 VAC 74 VDC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 1.5 kV Contactâ Contact diameter: 1.5 mm Contactââ Contact diameter: 1 mm Min. cross section: 0.08 mm² Max. cross section: 1 mm² Max. current: 8 A |
| Material specifications | Insulator material: PA66 Contact material: CuZn Contact surface: Nickel-plated, gold coating |
| Connector | Direction of rotation: Standard |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: 100 |
| Mounting | Connection method: Solder cup |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
