PHOENIX CONTACT 1602805
PHOENIX CONTACTNon disponibile

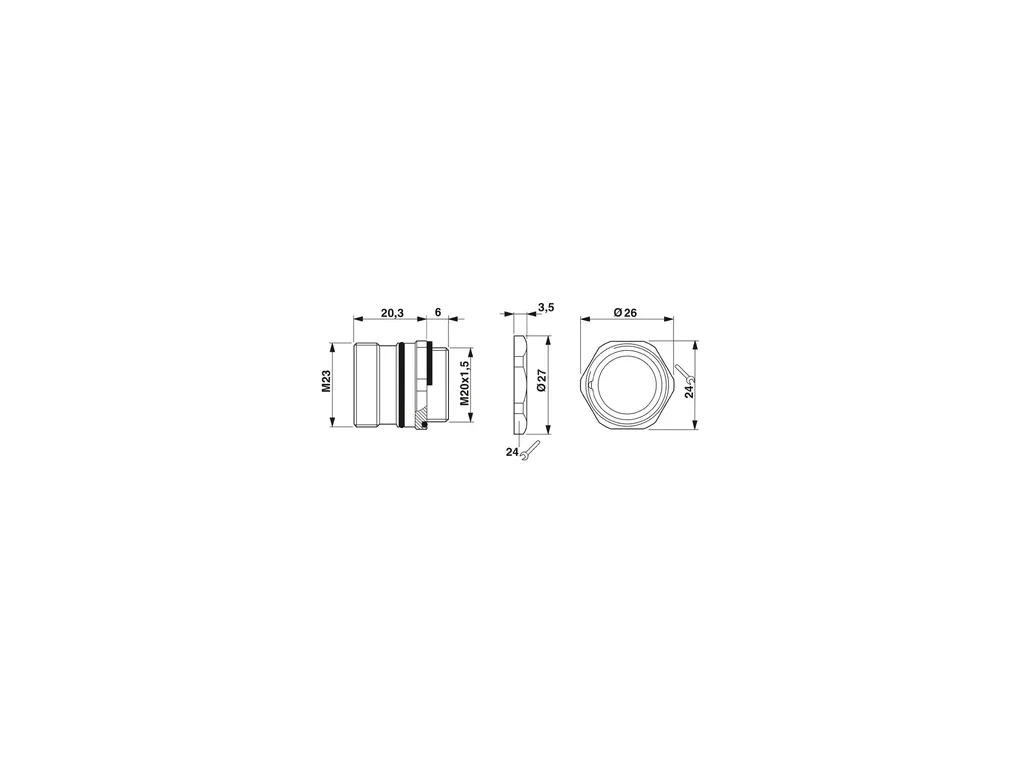

RC-19S1N126000L - Device connector front mounting

M23, Device connector front mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Socket, Solder cup, Axial seal, Central fixing, Panel thickness min.: 0.8 mm, Panel thickness max.: 6.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241539
Cod. Articolo: 1602805
Cod. Fornitore: 1602805
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
MountingConnection method: Solder connection
Product propertiesProduct type: Circular connectors (device side)
Thread type: M23
Material specificationsFlammability rating according to UL 94: V0
Connection dataConductor connection
Connection method: Solder connection
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 100
Connection method: Solder cup
Contact switching type: Socket
Application: Signal
Number of positions: 19
Direction of rotation: Standard
Connection profile: 16+3
Contact diameter Power contacts: 1.5 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 10 A
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Contact diameter Data contacts: 1.5 mm
Housing
Order information:: Order contact inserts separately
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Specifiche
ECLASSECLASS-11.0: 27440109
ECLASS-12.0: 27440109
ECLASS-13.0: 27440109
ETIMETIM 8.0: EC003569
UNSPSCUNSPSC 21.0: 39121400
