PHOENIX CONTACT 1607804
PHOENIX CONTACTNon disponibile

RF-12P1N8AWB00 - Device connector front mounting

Device connector front mounting, straight, Screw locking mechanism, M23, number of positions: 12, contact connection type: Pin, Axial O-ring, 4x Ø 3.2, shielded: yes, degree of protection: IP67, number of positions: 12, connection method: Crimp connection, series: RF
Cod. Articolo: 1607804
Cod. Fornitore: 1607804
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts Ø 1 mm separately

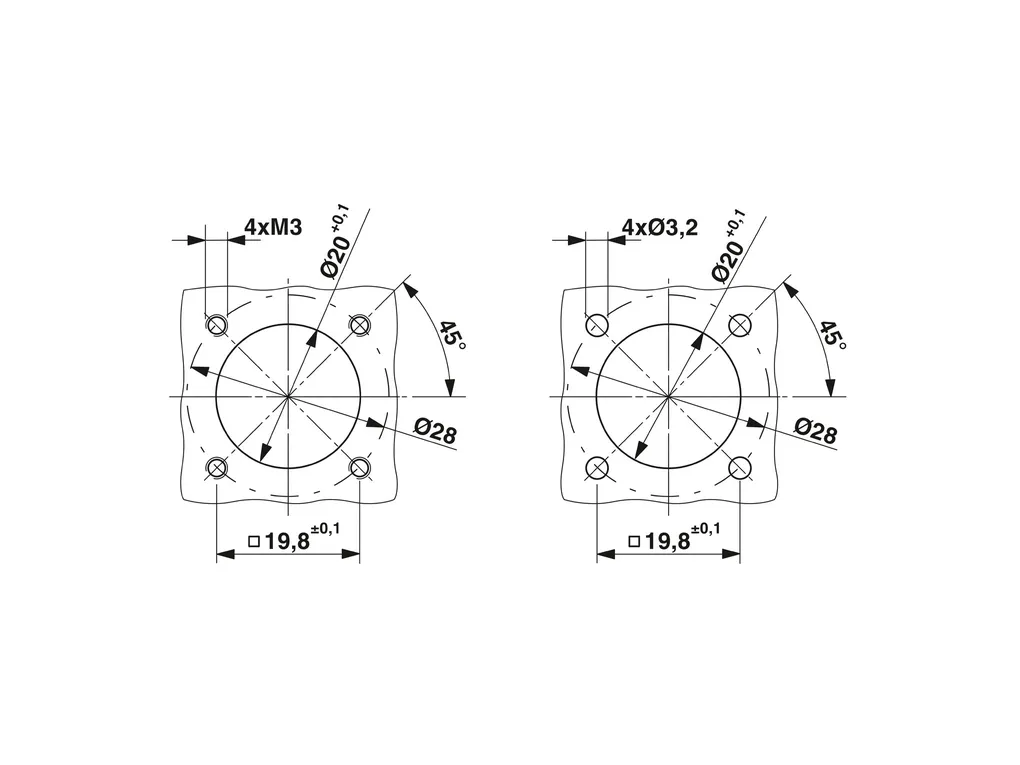

MountingMounting: 4x Ø 3.2
Connection method: Crimp connection
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 12
Connection profile: 12
Application: Signal
Series: RF
Shielded: yes
Coding: N
Thread type: M23
Material specificationsSeal material: FPM
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Insulator material: PA 6.6
Gasket and O-ring material: FPM
Electrical propertiesContact
Contact diameter: 1 mm
Max. current: 8 A
Nominal voltage UN: 48 VAC 74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Connection dataConductor connection
Connection method: Crimp connection
Contact connection type: Pin
ConnectorType: straight
Direction of rotation: Standard
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -20°C ... 125°C
Altitude: 2000 m
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Approvals_00329.pdf

Assembly_instructions_00048.pdf

Manufacturer_declaration_05486.pdf
