PHOENIX CONTACT 1607905

Non disponibile

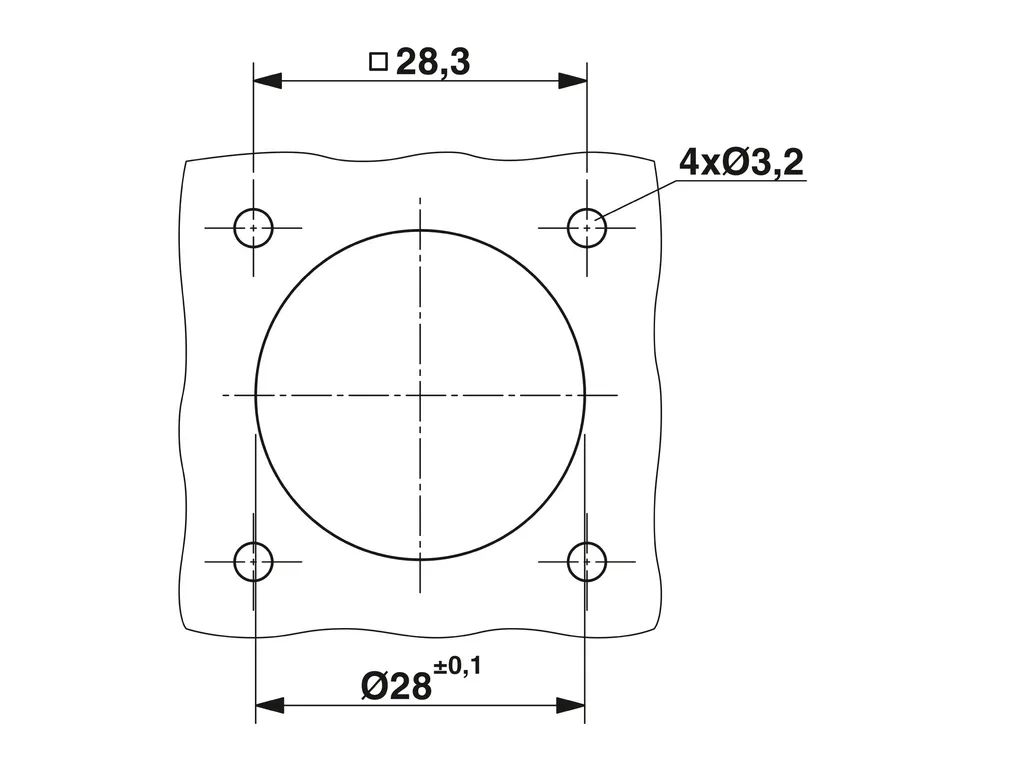

RF-Z0003 - Square mounting flange

Square mounting flange, Axial seal, 4xM3, flange dimensions: 35mm x 35mm, series: RF, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1242369

Cod. Articolo: 1607905

Cod. Fornitore: 1607905

PHOENIX CONTACT

Caratteristiche Tecniche

Specifiche

Download

Caratteristiche Tecniche

Product properties	Product type: Mounting material Series: RF
Dimensions	Housing Flange dimensions: 35mm x 35mm
Material specifications	Seal material: FPM
Mounting	Mounting: 4x M3

Specifiche

ECLASS	ECLASS-11.0: 27440210 ECLASS-12.0: 27440210 ECLASS-13.0: 27440210
ETIM	ETIM 9.0: EC002310
UNSPSC	UNSPSC 21.0: 39121400

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00047.pdf

Manufacturer_declaration_10985.pdf

Technical_drawing_16972.pdf
