PHOENIX CONTACT 1610123

Non disponibile

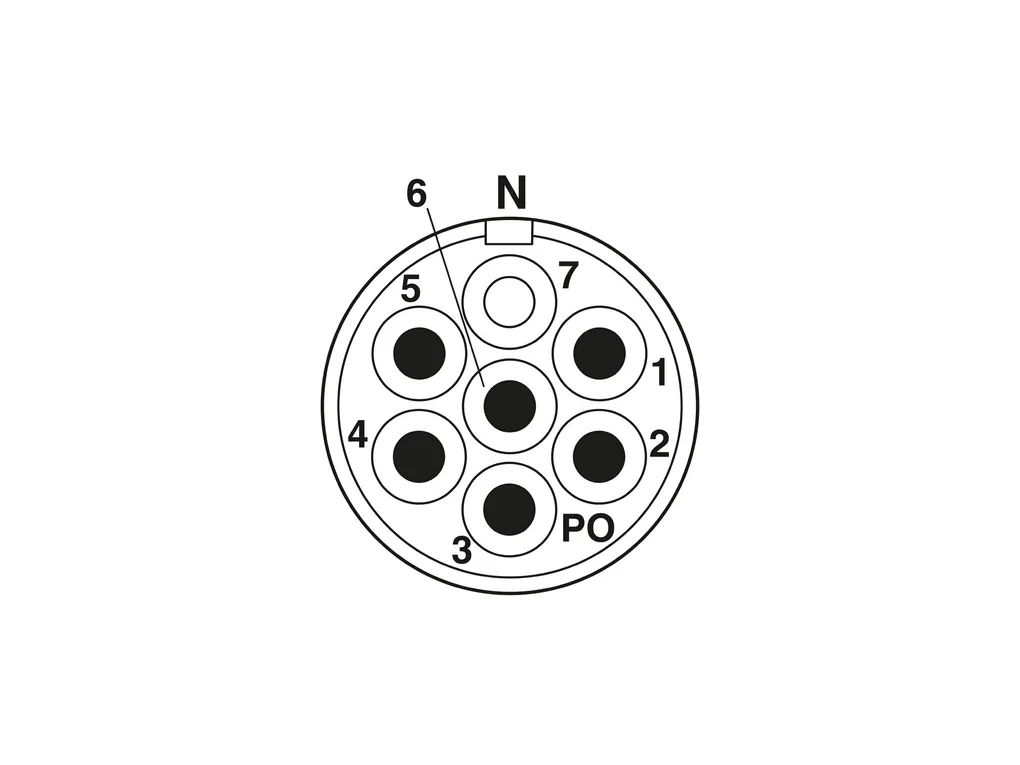

RC-06P1N12R2EP - Cable connector

M23, Cable connector, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 3 mm ... 10.5 mm, coding: N

Cod. Articolo: 1610123

Cod. Fornitore: 1610123

PHOENIX CONTACT

Caratteristiche Tecniche

Specifiche

Download

Caratteristiche Tecniche

Mounting	Connection method: Solder connection
Product properties	Product type: Circular connector (cable-side) Thread type: M23
Connection data	Conductor connection Connection method: Solder connection
Connector	Insulating body Coding: N Insertion/withdrawal cycles: 50 Connection method: Solder cup Contact switching type: Pin Application: Signal Number of positions: 6 Direction of rotation: Standard Connection profile: 6 Litz wire cross-section Power contacts min.: 0.08 mm² Litz wire cross-section Power contacts max.: 2.5 mm² Rated current Power contacts: 20 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Order information:: Order contact inserts and cable clamping/shield accessories separately Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 3 mm ... 10.5 mm Seal material: NBR
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67

Specifiche

ECLASS	ECLASS-11.0: 27440109 ECLASS-12.0: 27440109 ECLASS-13.0: 27440109
ETIM	ETIM 8.0: EC003569
UNSPSC	UNSPSC 21.0: 39121400

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11031.pdf
