PHOENIX CONTACT 1615820

Non disponibile

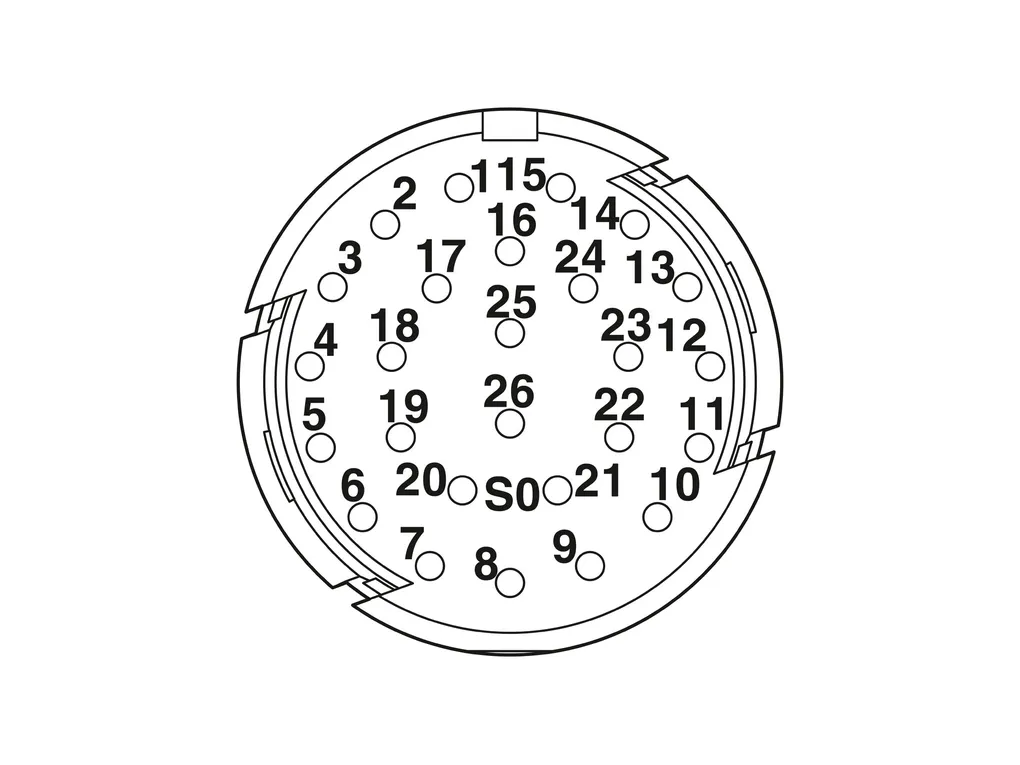

HC-26S1N120000J - Contact insert

Contact insert, M27, number of positions: 26, contact connection type: Socket, number of positions: 26, connection method: Solder connection, series: HC, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1242993

Cod. Articolo: 1615820

Cod. Fornitore: 1615820

PHOENIX CONTACT

Caratteristiche Tecniche

Specifiche

Download

Caratteristiche Tecniche

Product properties	Number of positions: 26 Connection profile: 26 Application: Signal Series: HC Coding: N Thread type: M27
Electrical properties	Contact Nominal voltage U_N: 48 VAC (74 V DC)
Mounting	Connection method: Solder connection

Specifiche

ECLASS	ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223
ETIM	ETIM 8.0: EC003557
UNSPSC	UNSPSC 21.0: 39121400

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11318.pdf
