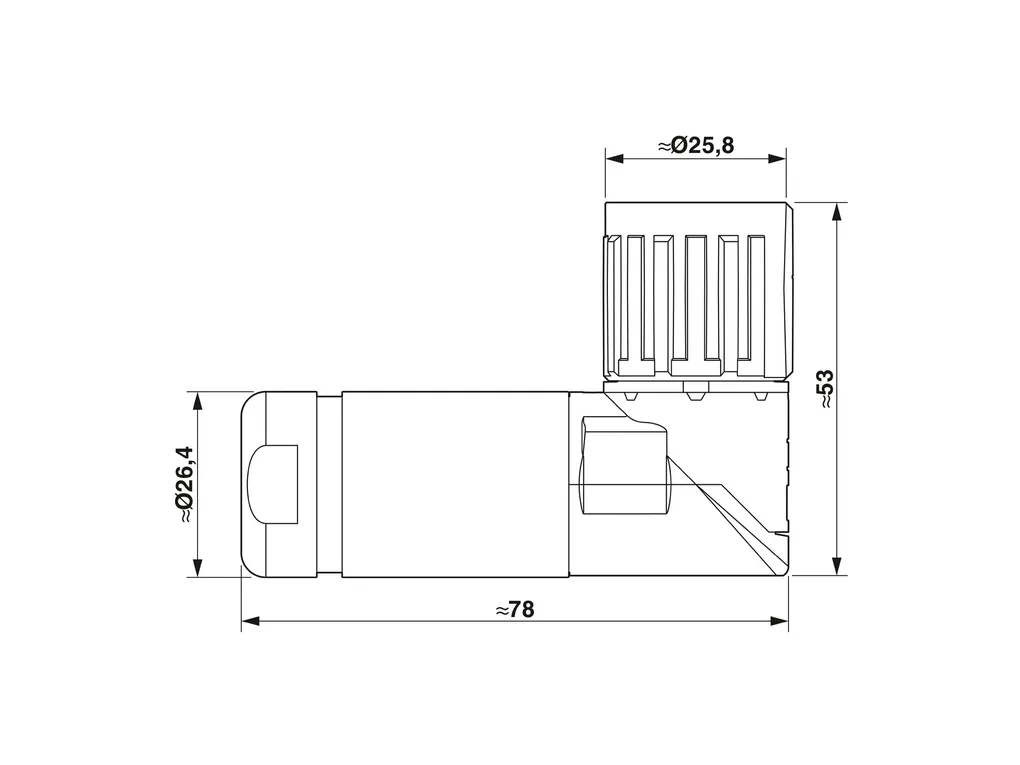

PHOENIX CONTACT 1619375
PHOENIX CONTACTNon disponibile

CA-17P1N8AT007S - Cable connector

M23, Cable connector, series: CA, angled, shielded: yes, SPEEDCON, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 6 mm ... 10 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243493
Cod. Articolo: 1619375
Cod. Fornitore: 1619375
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesGeneral: Order 17 x 1 mm crimp contacts separately
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Note: Order information: Order crimp contacts Ø 1 mm separately
for max. connection cross section
Coding: N
Insulation body material: PA 6.6
Connection method: Crimp connection
Contact switching type: Pin
Application: Signal
Number of positions: 17
Direction of rotation: Standard
Connection profile: 17
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage Signal contact: 48 VAC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: SPEEDCON
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Seal
External cable diameter: 6 mm ... 10 mm
Seal material: NBR
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Descrizione
Cable connector, CA, angled, shielded: yes, SPEEDCON locking, M23, No. of pos.: 17, type of contact: Pin, Crimp connection, cable diameter range: 6 mm ... 10 mm
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00054.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11646.pdf

Technical_drawing_10630.pdf
