PHOENIX CONTACT 1619782
PHOENIX CONTACT 1619782
PHOENIX CONTACTNon disponibile

CA-17S1N12HZ00 - Device connector, rear mounting

M23, Device connector, rear mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Solder connection, Axial seal, Central fixing, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243834
Cod. Articolo: 1619782
Cod. Fornitore: 1619782
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connectors (device side)
ConnectorConnection 1
Head design: Socket
Insulating body
Coding: N
Insulation body material: PBT
Contact material: CuZn
Contact surface material: Ni/Au
Insertion/withdrawal cycles: 100
Connection method: Solder connection
Contact switching type: Socket
Application: Signal
Number of positions: 17
Direction of rotation: Standard

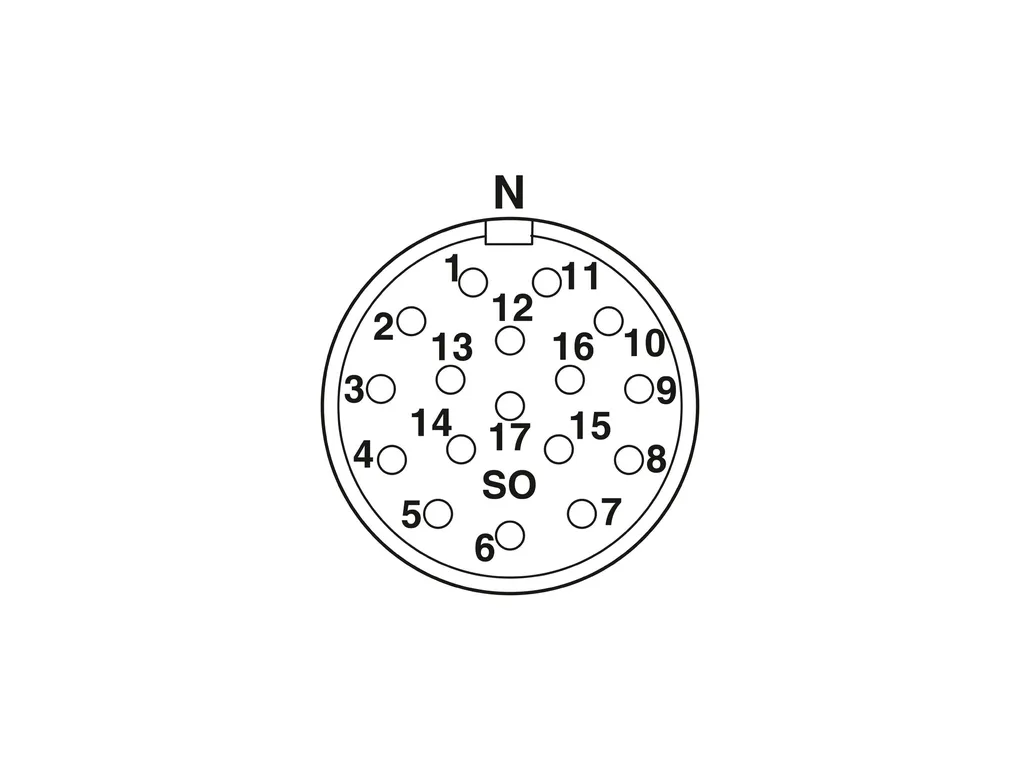

Connection profile: 17
Rated voltage: 48 VAC
74 VDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00056.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11985.pdf

Technical_drawing_17359.pdf
