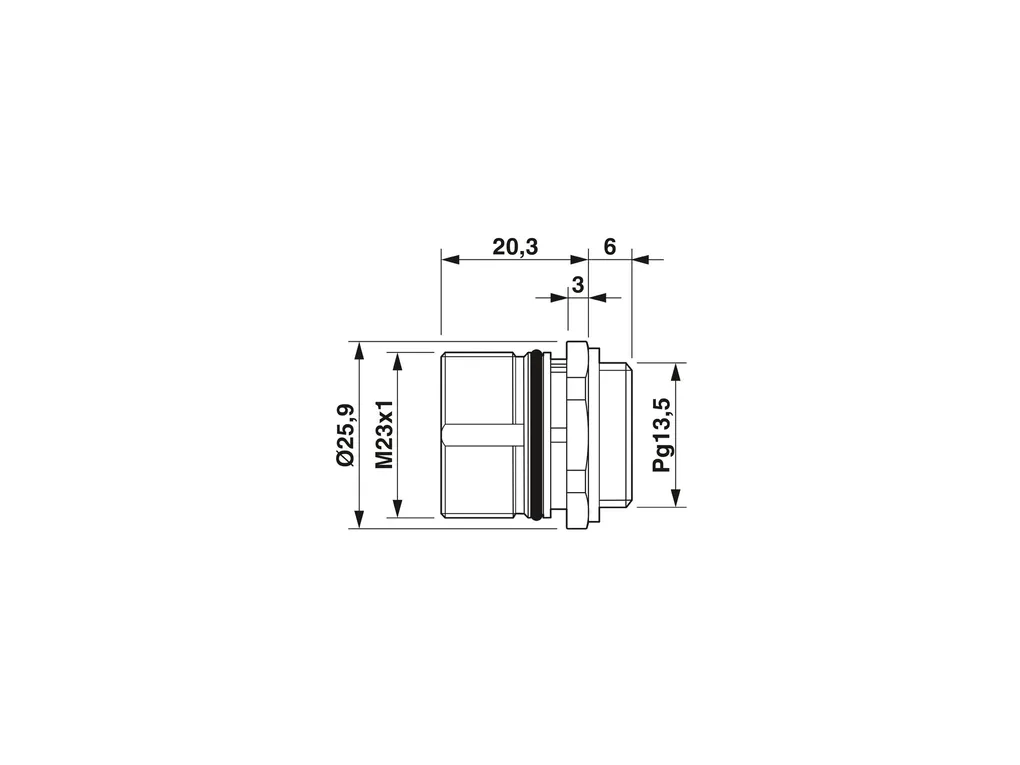

PHOENIX CONTACT 1619901
PHOENIX CONTACTNon disponibile

CA-06S1N8A6Z00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Axial seal, Central fastening Pg13,5, coding: N
Cod. Articolo: 1619901
Cod. Fornitore: 1619901
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
NotesGeneral: Order crimp contacts 6 x Ø 2 mm separately
Product propertiesProduct type: Circular connectors (device side)
ConnectorConnection 1
Head design: Socket
Insulating body
Note: Order information: Order crimp contacts Ø 2 mm separately
Coding: N
Insulation body material: PA 6.6
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 6
Direction of rotation: Standard
Connection profile: 6
Contact diameter Signal contacts: 2 mm
Litz wire cross-section Signal contacts min.: 1 mm²
Litz wire cross-section Signal contacts max.: 2.5 mm²
Nominal current per signal contact: 20 A
Rated voltage Signal contact: 48 VAC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Order information:: If necessary, order locking nut separately
Housing material: CuZn
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Descrizione
Device connector for front wall, CA, straight, shielded: yes, for standard and SPEEDCON interlock, M23, No. of pos.: 6, type of contact: Socket, Crimp connection, Axial seal, Central fastening Pg13,5
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00057.pdf

Manufacturer_declaration_05486.pdf

Technical_drawing_17428.pdf
