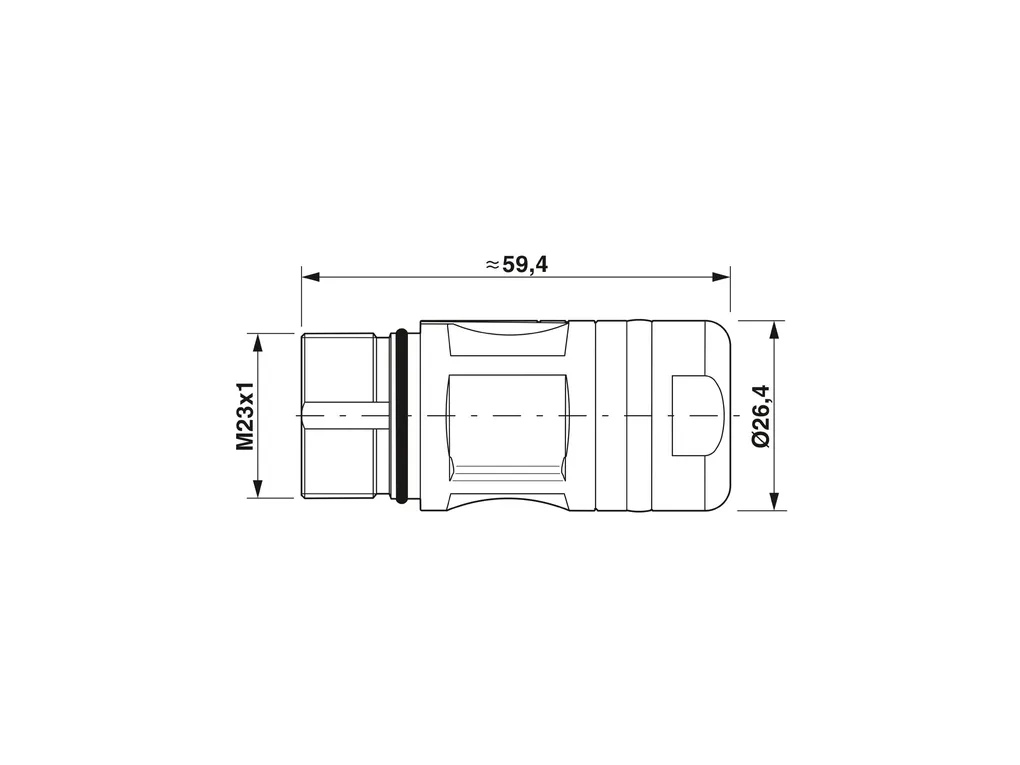

PHOENIX CONTACT 1620166
PHOENIX CONTACTNon disponibile

CA-07S1N8A90DN - Coupler connector

M23, Coupler connector, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 7, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 3 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244055
Cod. Articolo: 1620166
Cod. Fornitore: 1620166
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Descrizione
Download
Caratteristiche Tecniche
Product propertiesProduct type: Circular connector (cable-side)
ConnectorConnection 1
Head design: Socket
Insulating body
Note: Order information: Order crimp contacts Ø 2 mm separately
Coding: N
Insulation body material: PA 6.6
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 7
Direction of rotation: Standard
Connection profile: 7
Contact diameter Signal contacts: 2 mm
Litz wire cross-section Signal contacts min.: 1 mm²
Litz wire cross-section Signal contacts max.: 2.5 mm²
Nominal current per signal contact: 20 A
Rated voltage Signal contact: 48 VAC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Seal
External cable diameter: 3 mm ... 14.5 mm
Seal material: NBR
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Specifiche
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 9.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
Descrizione
Coupling connector, CA, straight, shielded: yes, for standard and SPEEDCON interlock, M23, No. of pos.: 7, type of contact: Socket, Crimp connection, cable diameter range: 3 mm ... 14.5 mm
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00060.pdf

Assembly_instructions_00032.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12206.pdf

Technical_drawing_17488.pdf
