SAC-14P-30,0-PUR/M16FR - Master cable

Master cable, application: Sensor/actuator box Metal, number of slots: 10, number of positions: 14, slot assignment: single, status display: No; master cable connection: M16 plug connection, PUR/PVC, cable length: 30 m, shielding: no, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1260739

Cod. Articolo: 1622093

Cod. Fornitore: 1622093

PHOENIX CONTACT

Product properties	Product type: Master cable, assembled Number of positions: 14 Application: Sensor/actuator box Number of slots: 10
Electrical properties	Nominal voltage U_N: 48 VAC 60 VDC
Signaling	Status display present: No
Material specifications	Material: PUR Cu alloy Seal material: NBR Contact material: CuZn Contact surface material: Ni/Au Contact carrier material: TPU GF Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: TPU Material of contact surface, master cable side: gold-plated
Connector	Connection 1 Head design: Socket Head cable outlet: angled Head thread type: M16 Connection 2 Head design: free cable end

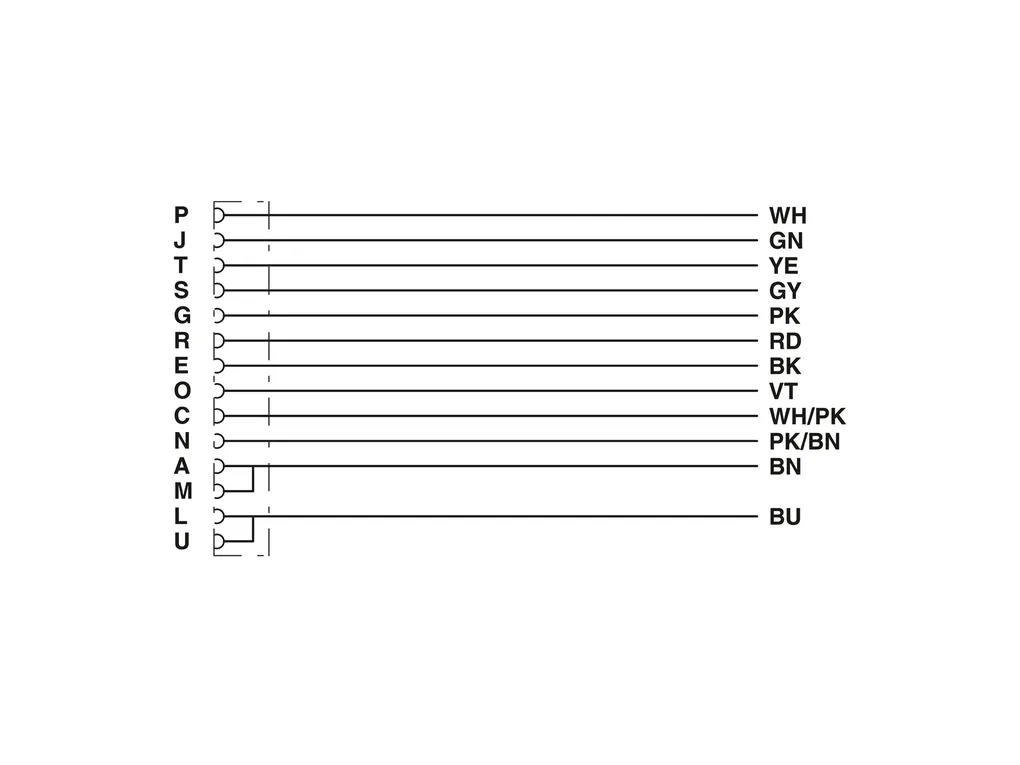

Cable/line	Cable length: 30 m PUR/PVC black[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/945d5cfff1f2f74e974d8aeea14786c8/-S204x204-FJPG Cable weight: 111.1 kg/km UL AWM Style: 20549 Number of positions: 12 Shielded: no Cable type: PUR/PVC black[PUR] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 10x 0.34 mm² (Signal line) 2x 0.75 mm² (power line) Wire diameter incl. insulation: 1.3 mm ±0.1mm (Signal line) 1.8 mm ±0.1mm (power line) External cable diameter: 8.6 mm ±0.2mm Outer sheath, material: PUR External sheath, color: black RAL9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, white, green, yellow, gray, pink, red, black, violet, white/pink, pink/brown Inner sheath thickness: Ã¢¥ 0.15 mm Thickness, outer sheath: Ã¢¥ 0.38 mm Overall twist: Wires twisted in layers Nominal voltage, cable: 300 V Test voltage: 2000 V Minimum bending radius, fixed installation: 7.5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 1500000 Flame resistance: DINEN50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation) 80°C (in acc. with UL)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 90°C (Plug / socket) -40°C ... 90°C (cable, fixed installation)
Mounting	Connection method: Fixed connection
