PHOENIX CONTACT 1623922

Non disponibile

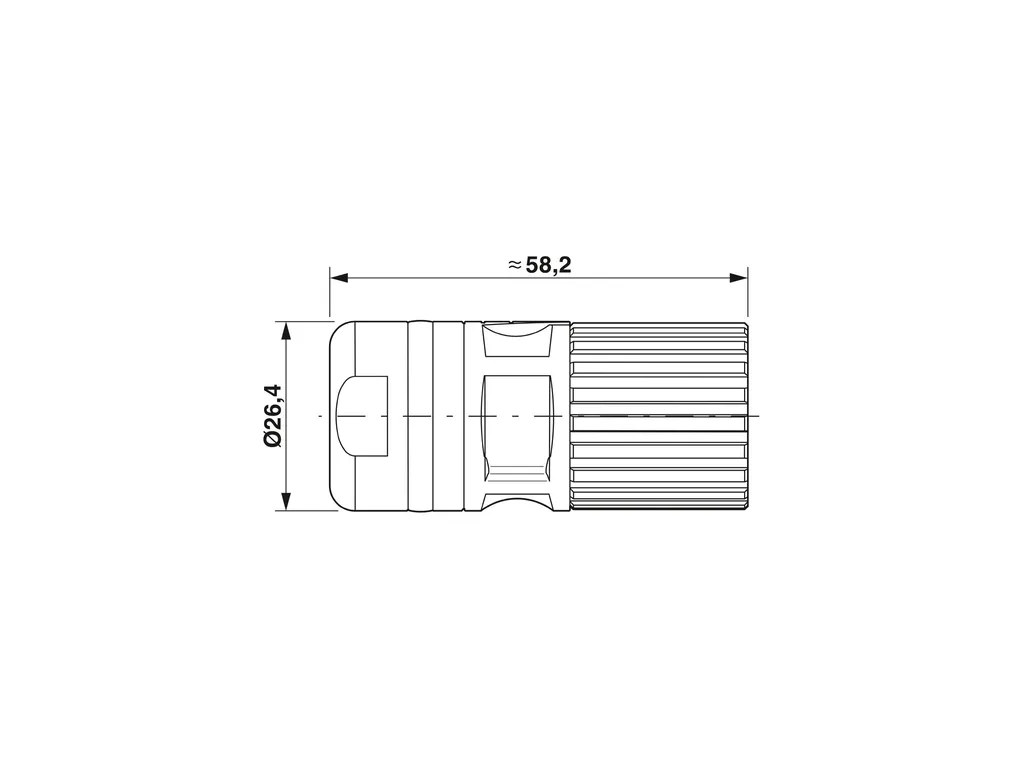

CA-00000008008 - Sleeve housing for cable connector

M23, Sleeve housing for cable connector, series: CA, straight, shielded: yes, Screw locking mechanism, cable diameter range: 10 mm ... 14.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1245027

Cod. Articolo: 1623922

Cod. Fornitore: 1623922

PHOENIX CONTACT

Caratteristiche Tecniche

Specifiche

Download

Caratteristiche Tecniche

Product properties	Product type: Sleeve housings
Connector	Housing Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 10 mm ... 14.5 mm Seal material: NBR

Specifiche

ECLASS	ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116
ETIM	ETIM 8.0: EC002635
UNSPSC	UNSPSC 21.0: 39121400

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12695.pdf
