CA-1RS1N8A6Z00 - Device connector front mounting

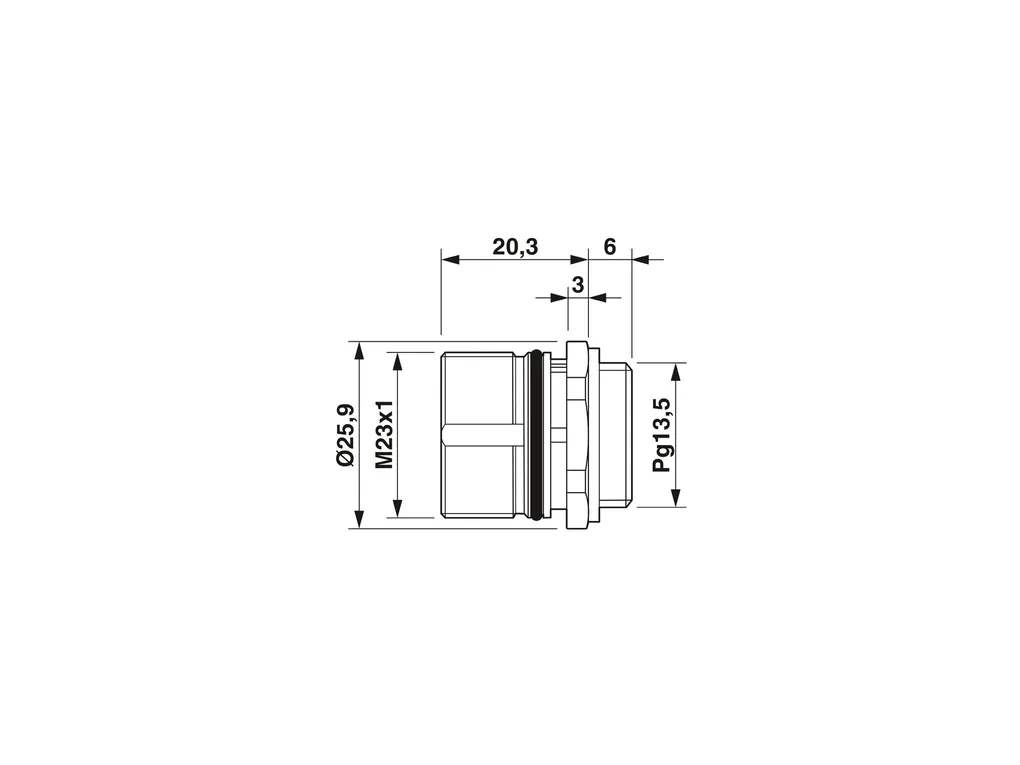

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 16+2+FE, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Axial seal, Central fastening Pg13,5, coding: N

Cod. Articolo: 1624019

Cod. Fornitore: 1624019

PHOENIX CONTACT

Notes	General: Order crimp contacts 16 x Ã 1 mm, 3 x Ã 1.5 mm separately
Product properties	Product type: Circular connectors (device side)
Material specifications	Flammability rating according to UL 94: V0
Connector	Connection 1 Head design: Socket Insulating body Note: Order information: Order crimp contacts 16 x Ã 1 mm, 3 x Ã 1.5 mm separately for max. connection cross section for max. connection cross section Coding: N Insulation body material: PA 6.6 Insertion/withdrawal cycles: 100 Connection method: Crimp connection Contact switching type: Socket Application: Signal Number of positions: 19 Direction of rotation: Standard Connection profile: 16+2+FE Contact diameter Power contacts: 1.5 mm Litz wire cross-section Power contacts min.: 0.08 mm² Litz wire cross-section Power contacts max.: 1 mm² Rated current Power contacts: 10 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: II III Degree of pollution: 3 Contact diameter Signal contacts: 1 mm Litz wire cross-section Signal contacts min.: 0.08 mm² Litz wire cross-section Signal contacts max.: 1 mm² Nominal current per signal contact: 8 A Rated voltage Signal contact: 48 VAC Installation height: 2000 m Housing Order information:: If necessary, order locking nut separately Housing material: CuZn Type of locking: for standard and SPEEDCON interlock Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C
