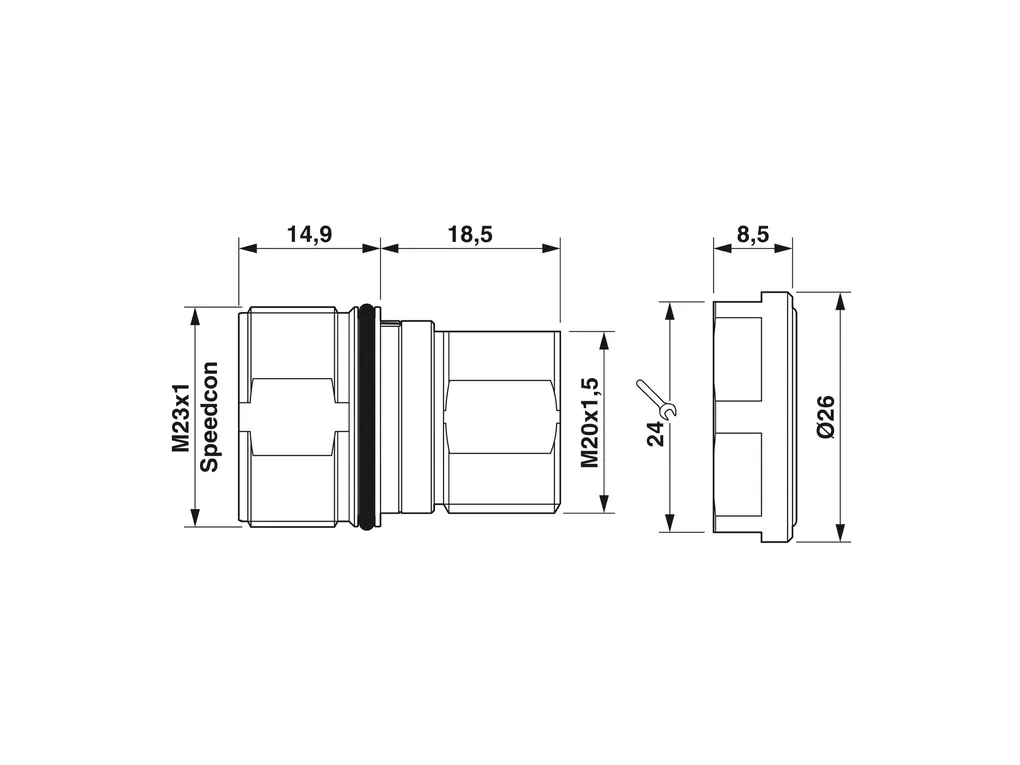

PHOENIX CONTACT 1624027
PHOENIX CONTACTNon disponibile

CA-16P1N8A6L00 - Device connector front mounting

M23, Device connector front mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, Axial seal, Central fastening M20 x 1.5, can be positioned via a locking nut, coding: N
Cod. Articolo: 1624027
Cod. Fornitore: 1624027
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
NotesGeneral: Order 6 x Ø 1 mm crimp contacts separately
Product propertiesProduct type: Circular connectors (device side)
Material specificationsFlammability rating according to UL 94: V0
ConnectorInsulating body
Note: Order information: Order crimp contacts Ø 1 mm separately
Coding: N
Insulation body material: PA 6.6
Connection method: Crimp connection
Contact switching type: Pin
Application: Signal
Number of positions: 16
Direction of rotation: Standard
Connection profile: 16
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts min.: 0.08 mm²
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Rated voltage Signal contact: 48 VAC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Specifiche
ECLASSECLASS-11.0: 27440109
ECLASS-12.0: 27440109
ECLASS-13.0: 27440109
ETIMETIM 9.0: EC003569
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00035.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_12713.pdf

Technical_drawing_17726.pdf
