Non disponibile

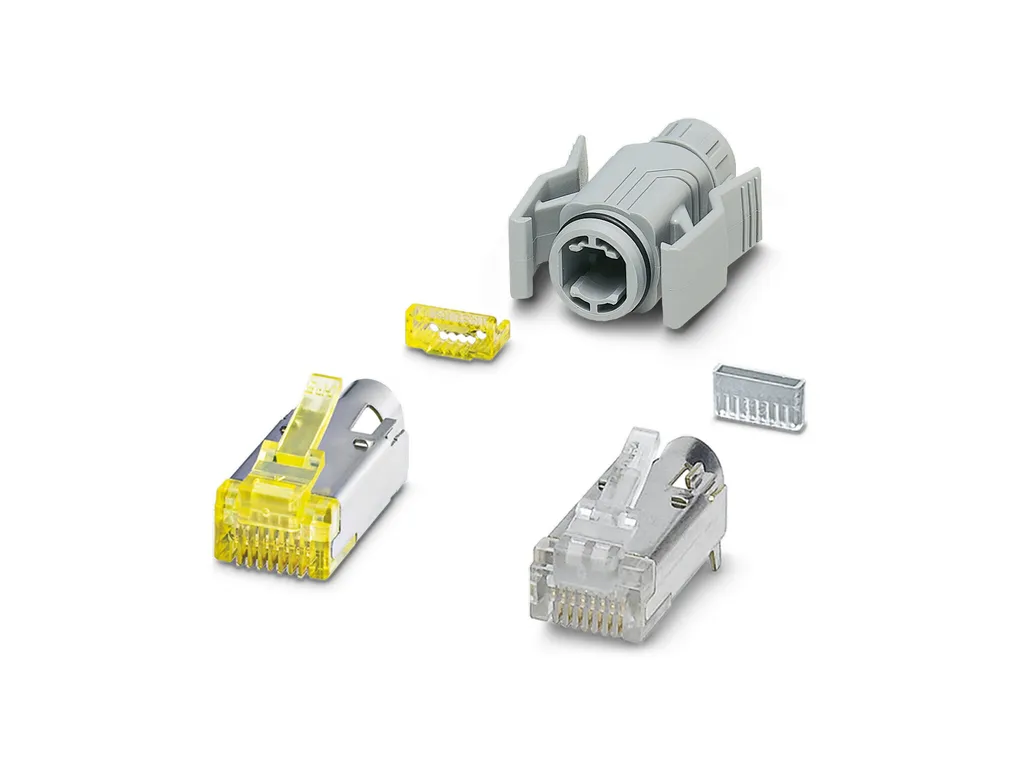

| Product properties | Type: RJ45 Product type: Sleeve housings Sensor type: Ethernet Number of positions: 8 No. of cable outlets: 1 Cable outlet: straight Insulation characteristics Overvoltage category: I Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 72 V (DC) |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/fa5c9c9f26661146a3cb2a8f7dfb90cf/-S204x204-FJPG Width: 38.4 mm Height: 19.9 mm Length: 45 mm |
| Material specifications | Color: traffic grey A RAL 7042 Flammability rating according to UL 94: V0 Cable seal material: NBR O-ring material: FPM Housing material: PA |
| Cable/line | External cable diameter (): 5 mm ... 8.5 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠1000 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 80°C |
| ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440224 |
| ETIM | ETIM 9.0: EC000437 |
| UNSPSC | UNSPSC 21.0: 31261500 |
