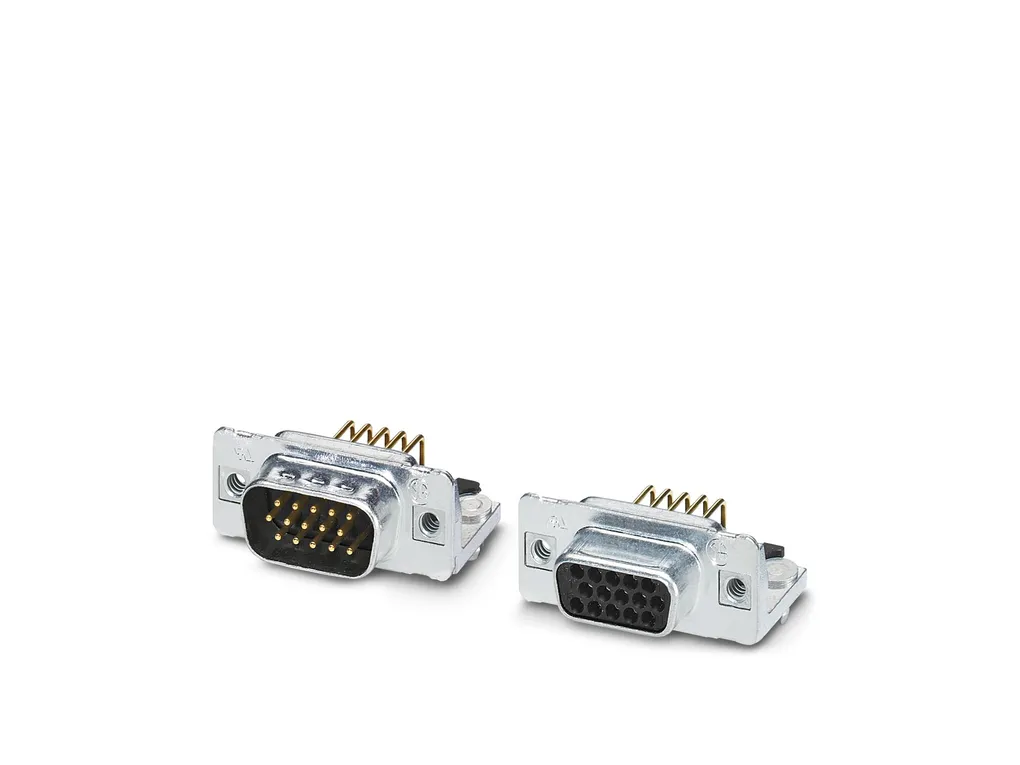

| Product properties | Type: D-SUB Male Product type: Male insert Number of positions: 15 Connection profile: D-SUB 9 Application: high-position Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 2 |
| Electrical properties | Rated voltage in acc. with IEC 61076-2-101: 250 V Rated voltage (III/3): 60 V Rated surge voltage: 1 kV Rated current: 3 A (at 20°C) Test voltage: 1000 V Transmission medium: Copper |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/03a3306627d5df40b073ebc7484d36dd/-S204x204-FJPG Width: 21.4 mm Height: 17.1 mm Length: 31.19 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Au/Sn Contact carrier material: Glass-fiber reinforced thermoplastics, UL 94 V0 Housing material: Steel, tin-plated |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠50 Insertion force per signal contact: ⤠3.40 N |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -55°C ... 105°C |
| Mounting | Mounting type: Threads and solder pins Connection method: PCB connection |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
