VS-09-BU-DSUB-HD-CD-B - D-SUB contact support

D-SUB contact carrier, shell size 1, for 15 signal contacts, type of contact socket, for crimp contacts, straight, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-09-...

Cod. Articolo: 1655124

Cod. Fornitore: 1655124

PHOENIX CONTACT

Product properties	Type: D-SUB Socket Product type: Female insert Number of positions: 15 Connection profile: D-SUB Application: high-position Number of slots: 1 Shielded: yes Insulation characteristics Overvoltage category: III Degree of pollution: 2
Electrical properties	Rated voltage (III/3): 60 V Rated surge voltage: 1 kV Rated current: 3 A (at 20°C) Test voltage: 1000 V Transmission medium: Copper
Connection data	Connection technology Connection method: Crimp connection

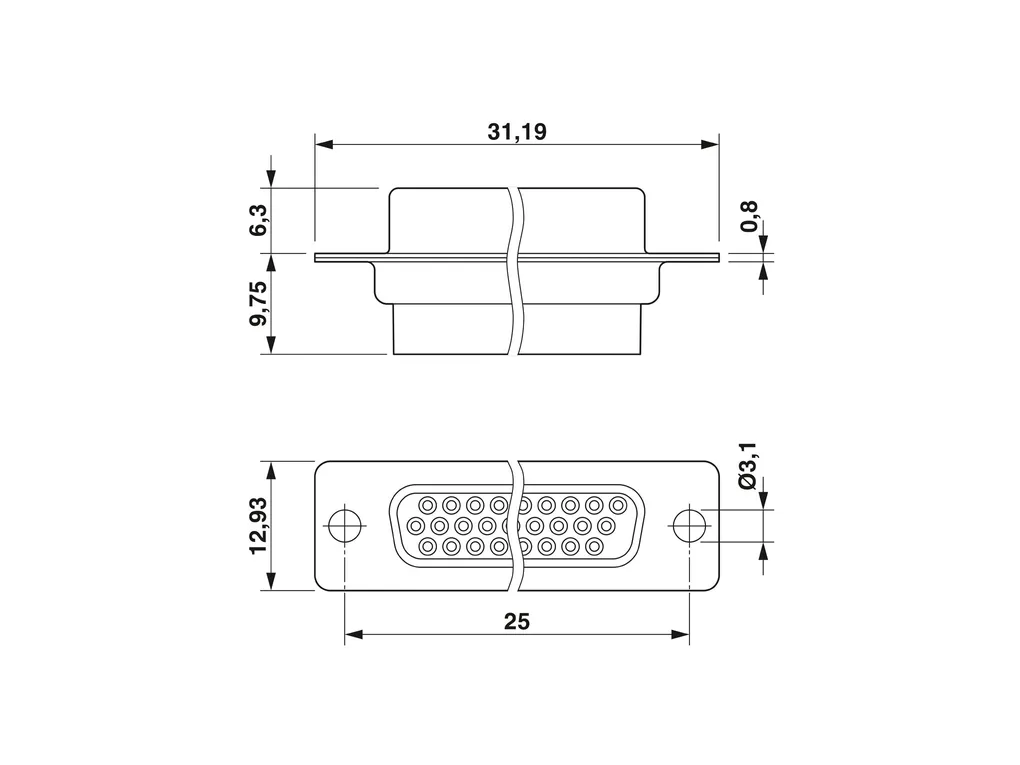

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/96706570aa8d5247aa28d26d718c1faf/-S204x204-FJPG Width: 16.1 mm Height: 12.93 mm Length: 31.19 mm
Material specifications	Flammability rating according to UL 94: V0 Housing surface material: metal-plated Contact surface material: Gold Contact carrier material: Glass-fiber reinforced thermoplastics, UL 94 V0 Housing material: Metal
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢¥ 500
Environmental and real-life conditions	Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -55°C ... 115°C
Mounting	Mounting type: Screw mounting Connection method: Crimp connection
