| Notes | General: The contacts must be ordered separately since they are not included in the scope of supply of the combi contact inserts. |

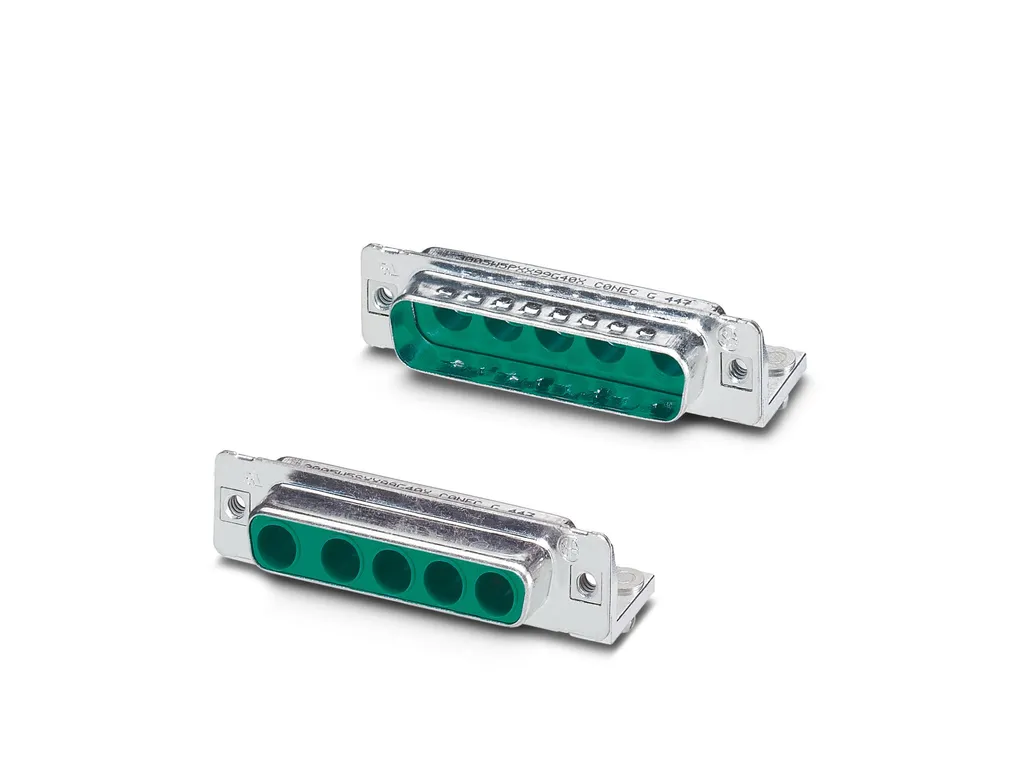

| Product properties | Type: D-SUB Socket Product type: Female insert Number of positions: 3 Connection profile: D-SUB Application: Combination contact insert Number of slots: 1 Shielded: yes |
| Electrical properties | Transmission medium: Copper |
| Connection data | Connection technology Connection method: Wave soldering contacts |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/4c614cd800fb22448bc81d25ec17e962/-S204x204-FJPG Width: 21.6 mm Height: 17.1 mm Length: 39.52 mm |
| Material specifications | Flammability rating according to UL 94: V0 Housing surface material: metal-plated Contact surface material: Gold Contact carrier material: PBTP Housing material: Metal |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -55°C ... 125°C |
| Mounting | Mounting type: Screw mounting Connection method: Wave soldering contacts |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
