| Product properties | Product type: Data cable preassembled Sensor type: Universal Number of positions: 15 Cable outlet: straight Insulation characteristics Overvoltage category: III Degree of pollution: 2 |
| Electrical properties | Rated current: 1 A Operating voltage: 30 V Transmission medium: Copper |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠50 |
| Material specifications | Contact material: Copper alloy Contact surface material: gold-plated Housing material: PVC Outer sheath, material: PVC |

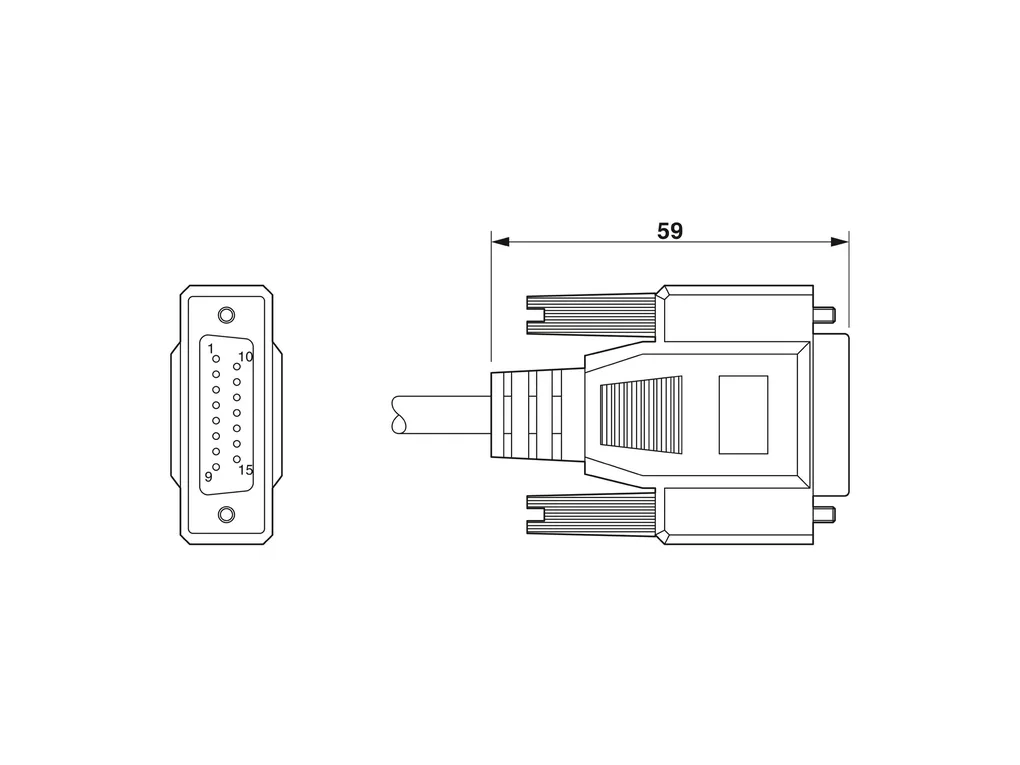

| Connector | Connection 1 Type: Socket straight D-SUB 15 Number of positions: 15 Connection 2 Type: Plug straight D-SUB 15 Number of positions: 15 |
| Cable/line | External cable diameter: 6 mm Outer sheath, material: PVC External sheath, color: beige Cable cross section: 0.08 mm² AWG signal line: 28 Shielding: Aluminum-coated foil, tinned copper braided shield |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): 0°C ... 70°C |
| ECLASS | ECLASS-11.0: 27060390 ECLASS-12.0: 27060390 ECLASS-13.0: 27060307 |
| ETIM | ETIM 9.0: EC000748 |
| UNSPSC | UNSPSC 21.0: 26121600 |
