| Notes | General: This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
| Product properties | Type: D-SUB Male Product type: Female insert Number of positions: 5 Pitch: 5.08 mm |
| Electrical properties | Rated voltage (III/3): 24 V Rated current: 16 A Insulation resistance: ⥠500 Mé Transmission medium: Copper |
| Connection data | Connection technology Connection method: PCB connection |

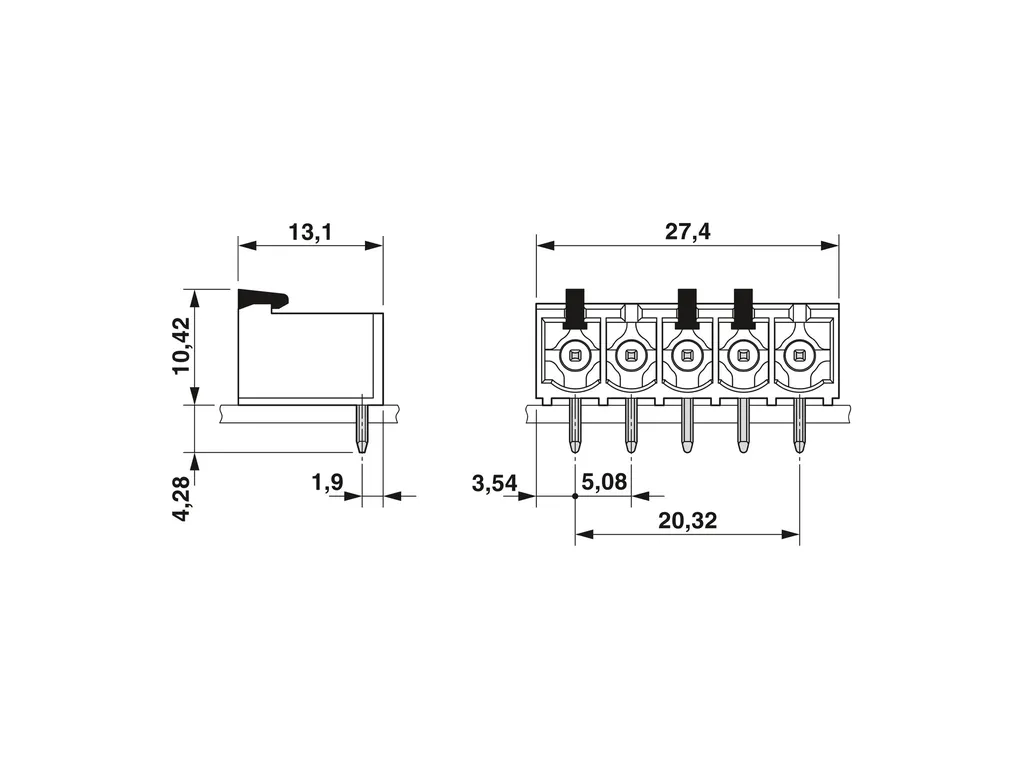

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ebbba98f37efde4facd2732d5af0343b/-S204x204-FJPG Width: 13.1 mm Height: 14.7 mm Length: 27.4 mm Pitch: 5.08 mm |
| Material specifications | Color: black Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Gold over nickel Contact carrier material: PBT |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 70°C |
| Mounting | Connection method: PCB connection |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27460201 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
