| Product properties | Type: SCRJ Product type: Patch panel Number of positions: 2 Connection profile: SCRJ in accordance with DIN EN 50377-6-1 Number of slots: 1 Housing type: DIN rail adapter |
| Electrical properties | Transmission medium: FO |

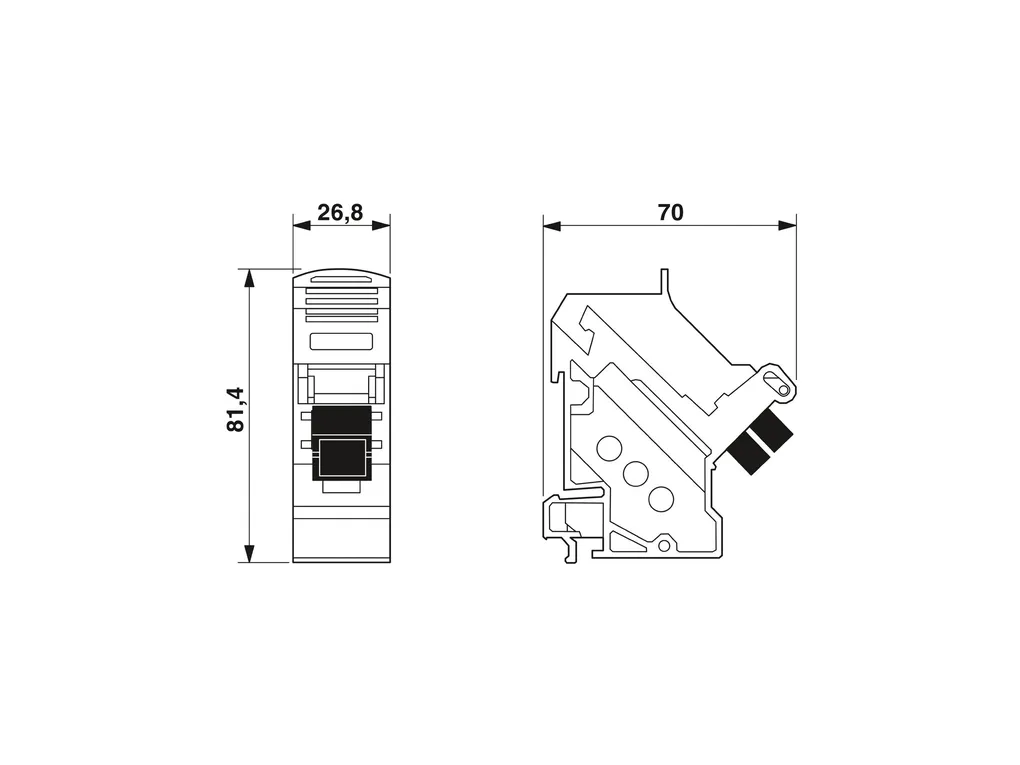

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/3bd06cd25efc0c4f99bd1e69ea0540ff/-S204x204-FJPG Width: 26.8 mm Height: 71 mm Length: 81.4 mm Mechanical characteristics Ferrule diameter: 2.50 mm |
| Material specifications | Color: gray Flammability rating according to UL 94: V0 Ferrule material: Zirconia ceramics Material, protective cover: PC Housing material: PC-GF |
| Cable/line | External cable diameter (): 4.5 mm ... 9 mm FO cable Fiber type: GOF, PCF, POF |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -10°C ... 60°C Ambient temperature (storage/transport): -40°C ... 70°C |
| Mounting | Mounting type: DIN rail mounting Connection method: Coupling |
| ECLASS | ECLASS-11.0: 19170112 ECLASS-12.0: 19170112 ECLASS-13.0: 19170112 |
| ETIM | ETIM 9.0: EC002697 |
| UNSPSC | UNSPSC 21.0: 43223300 |
