RC/TWGM/KVD/LBL 16+3 - Cable connector

Cable connector, number of positions: 19, status display: No; master cable connection: M23 screw locking, shielding: yes, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1245651

Cod. Articolo: 1685518

Cod. Fornitore: 1685518

PHOENIX CONTACT

Notes	General: The connector is designed for use on sensor/actuator boxes with an M23 plug-in connection.
Mounting	Connection method: Solder connection
Product properties	Product type: Circular connector (cable-side) Number of positions: 19

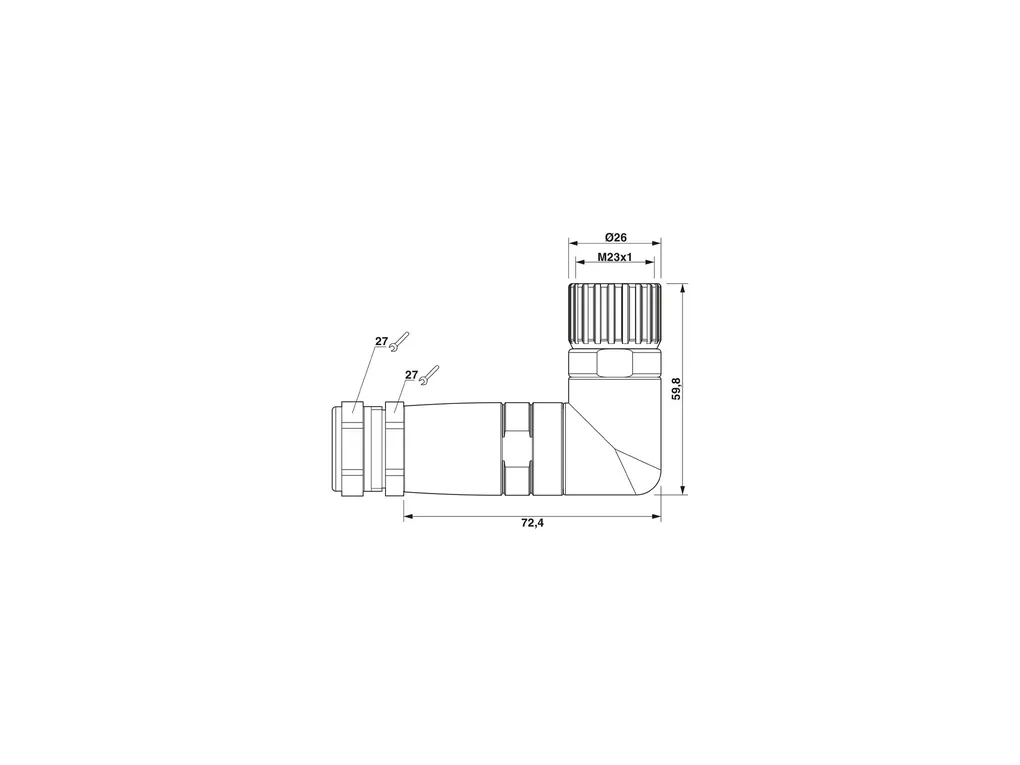

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6a3be6eac1f3284c992195d378dd5289/-S204x204-FJPG Width: 26 mm Height: 60 mm Length: 92 mm
Material specifications	Material: GD-Zn Seal material: FPM Contact material: CuZn Contact surface material: gold-plated Contact carrier material: PBT
Connection data	Conductor connection Connection method: Solder connection Pin assignment Slot/position = Wire color or connection: 1 / 4 (A)=15=WH 1 / 2 (B)=7=GYPK 2 / 4 (A)=5=GN 2 / 2 (B)=4=RDBU 3 / 4 (A)=16=YE 3 / 2 (B)=8=WHGN 4 / 4 (A)=3=GY 4 / 2 (B)=14=BNGN 5 / 4 (A)=17=PK 5 / 2 (B)=9=WHYE 6 / 4 (A)=2=RD 6 / 2 (B)=13=YEBN 7 / 4 (A)=11=BK 7 / 2 (B)=10=WHGY 8 / 4 (A)=1=VT 8 / 2 (B)=18=GYBN 1-8 / 1 (+ 120 V)=19=BN 1-8 / 3 (0 V)=6=BU 1-8 / 5 (PE)=12=GNYE
Electrical properties	Nominal voltage U_N: 150 V Rated current, total: 10 A (with 1 mm² conductor cross section)
Connector	Connection 2 Head design: Socket Head cable outlet: angled Head thread type: M23
Cable/line	Connection method: M23 screw locking External cable diameter: 9.5 mm ... 14.5 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -20°C ... 125°C
