| Product properties | Type: D-SUB Male Product type: Male insert Number of positions: 15 Connection profile: D-SUB 15 Shielded: no Insulation characteristics Overvoltage category: III Degree of pollution: 2 |
| Electrical properties | Rated voltage (III/3): 125 V Rated surge voltage: 1 kV Rated current: 1.5 A (at 20°C) Test voltage: 1000 V Transmission medium: Copper |

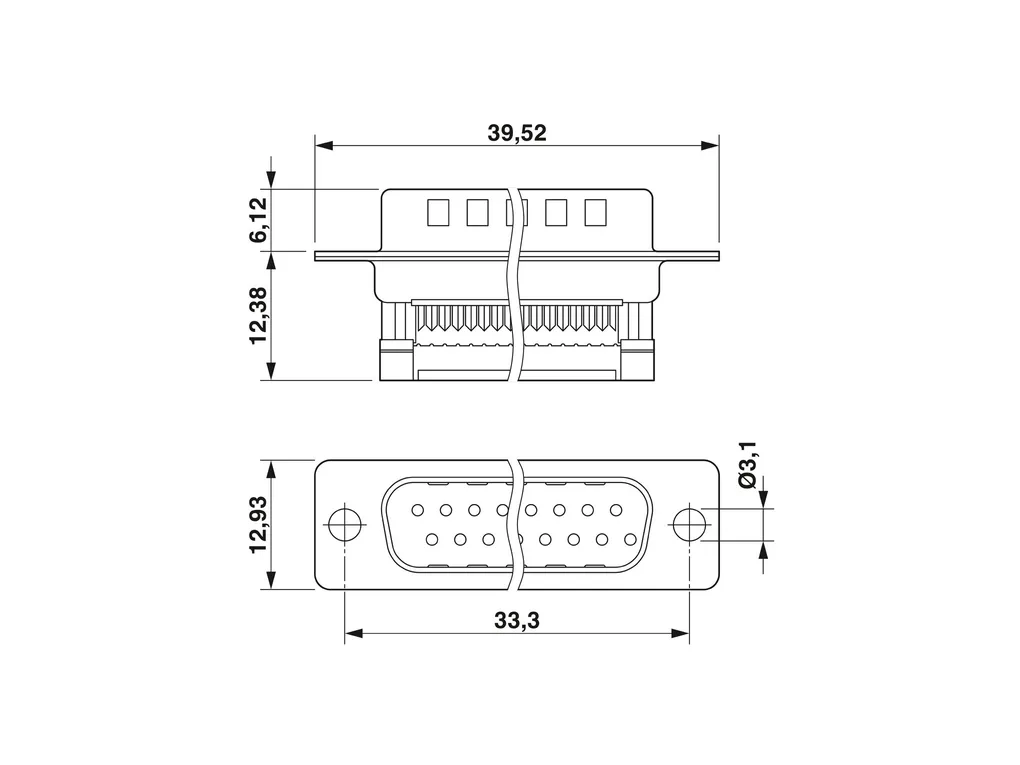

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/6e4d03fd2c716e44b97394911cb64b52/-S204x204-FJPG Width: 18.5 mm Height: 12.93 mm Length: 39.52 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Hard gold-plated over nickel Contact carrier material: Polyester GF Housing material: Steel, tin-plated |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠50 |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -55°C ... 125°C |
| Mounting | Mounting type: Hole Connection method: Flat-ribbon cable connection |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
