| Product properties | Type: D-SUB Socket Product type: Female insert Number of positions: 25 Connection profile: D-SUB Number of slots: 1 Shielded: yes Insulation characteristics Overvoltage category: III Degree of pollution: 2 |
| Electrical properties | Rated voltage in acc. with IEC 61076-2-101: 400 V Rated voltage (III/3): 125 V Rated current: 5 A (at 20°C) Test voltage: 1200 V Transmission medium: Copper |
| Connection data | Connection technology Connection method: Crimp connection |

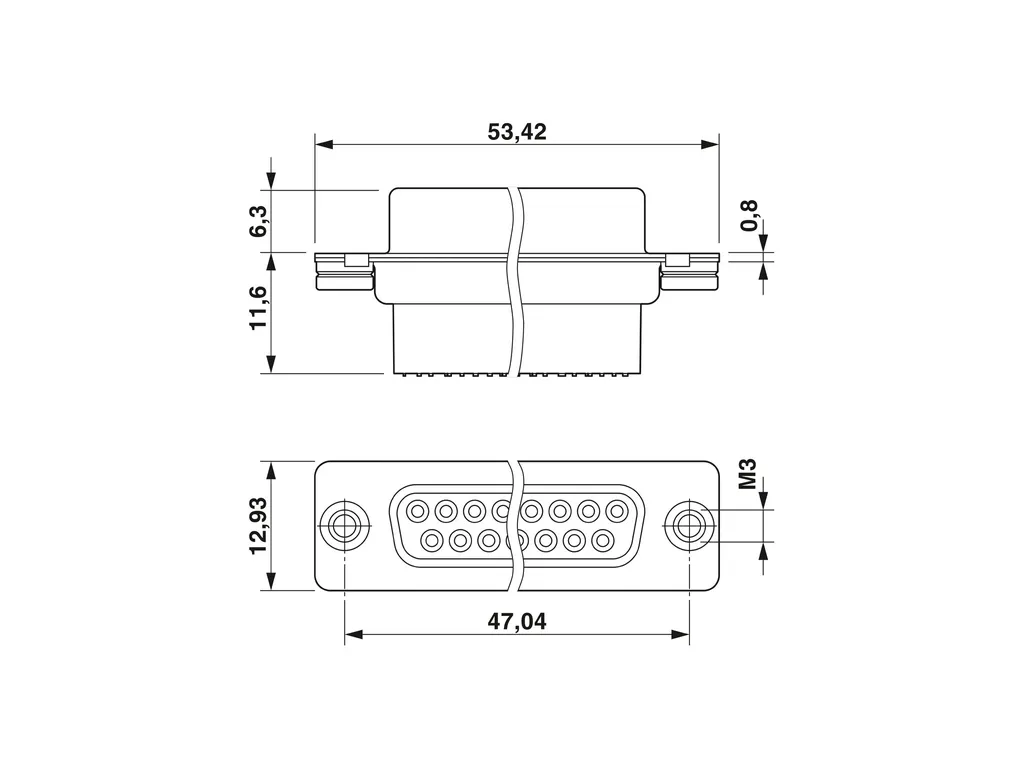

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/e62292510759e042921409493d185c98/-S204x204-FJPG Width: 18.1 mm Height: 12.93 mm Length: 53.42 mm |
| Material specifications | Flammability rating according to UL 94: V0 Housing surface material: metal-plated Contact material: Copper alloy Contact surface material: Gold Contact carrier material: Glass-fiber reinforced thermoplastics, UL 94 V0 Housing material: Metal |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 Insertion force per signal contact: ⤠3.40 N |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -55°C ... 130°C |
| Mounting | Mounting type: Screw mounting Connection method: Crimp connection |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
