| Notes | General: The contacts must be ordered separately since they are not included in the scope of supply of the contact carriers. |
| Product properties | Type: D-SUB Male Product type: Male insert Number of positions: 5 Connection profile: D-SUB Shielded: no |
| Electrical properties | Transmission medium: Copper |

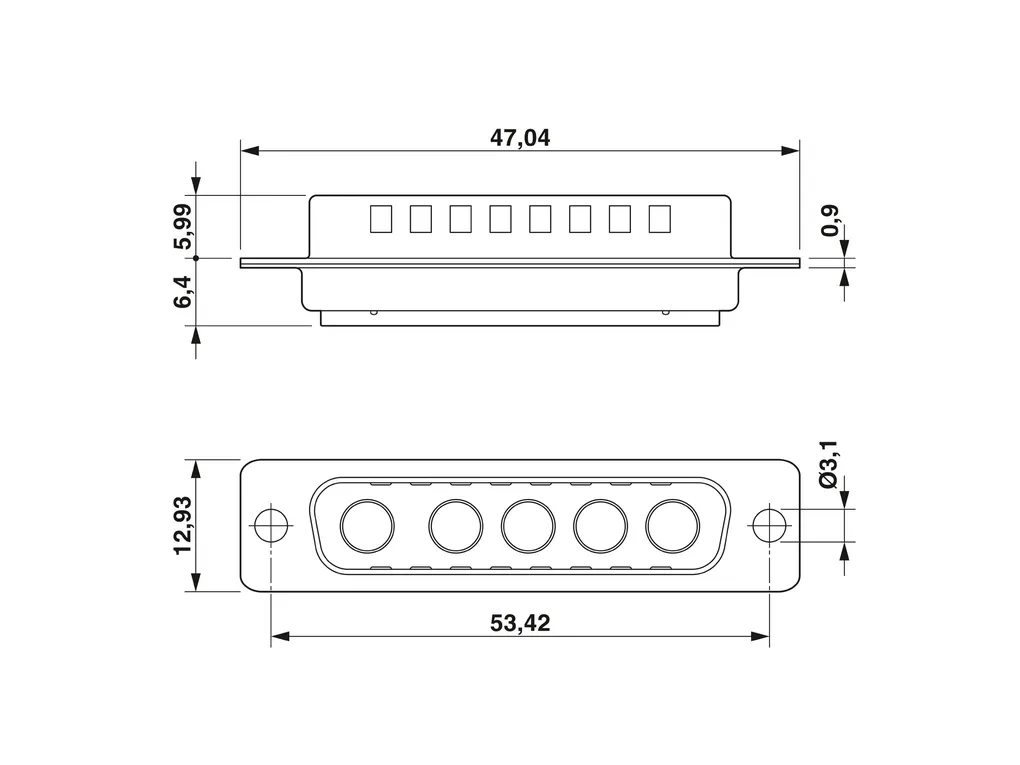

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/dcc7305118ca5a49b492ab7f096ecbdd/-S204x204-FJPG Width: 12.4 mm Height: 12.93 mm Length: 53.42 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Gold over nickel Contact carrier material: PBTP Housing material: Steel, yellow chromated |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -55°C ... 125°C |
| Mounting | Mounting type: Hole Connection method: D-SUB |
| ECLASS | ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223 |
| ETIM | ETIM 9.0: EC003557 |
| UNSPSC | UNSPSC 21.0: 39121400 |
