PHOENIX CONTACT 1858975
PHOENIX CONTACTNon disponibile

PTSA 1,5/ 7-3,5-F GY - PCB terminal block

PCB terminal block, nominal current: 8 A, rated voltage (III/2): 250 V, nominal cross section: 1.5 mm2, number of potentials: 7, number of rows: 1, number of positions per row: 7, product range: PTSA 1,5, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: gray, Pin layout: Linear front pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard
Cod. Articolo: 1858975
Cod. Fornitore: 1858975
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Caratteristiche Tecniche
Specifiche
Download
Caratteristiche Tecniche
Product propertiesType: PC termination block
Product line: COMBICON Terminals S
Product type: Printed circuit board terminal
Product family: PTSA 1,5
Number of positions: 7
Pitch: 3.5 mm
Number of connections: 7
Number of rows: 1
Number of potentials: 7
Pin layout: Linear front pinning
Solder pins per potential: 1
Electrical propertiesNominal current IN: 8 A
Nominal voltage UN: 250 V
Degree of pollution: 3
Rated voltage (III/3): 200 V
Rated surge voltage (III/3): 2.5 kV
Rated voltage (III/2): 250 V
Rated surge voltage (III/2): 2.5 kV
Rated voltage (II/2): 400 V
Rated surge voltage (II/2): 2.5 kV
Connection dataConnection technology
Type: PC termination block
Nominal cross section: 1.5 mm²
Conductor connection
Connection method: Push-in spring connection
Conductor cross section rigid: 0.2 mm² ... 1.5 mm²
Conductor cross section flexible: 0.2 mm² ... 1.5 mm²
Conductor cross section AWG: 24 ... 16
Conductor cross section flexible, with ferrule without plastic sleeve: 0.25 mm² ... 1 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve: 0.25 mm² ... 0.5 mm²
Stripping length: 9 mm
MountingMounting type: Wave soldering
Pin layout: Linear front pinning
Connection method: Push-in spring connection
Material specificationsMaterial data - contact
Note: WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material: Cu alloy
Surface characteristics: hot-dip tin-plated
Metal surface terminal point (top layer): Tin (4 - 8 µm Sn)
Metal surface soldering area (top layer): Tin (4 - 8 µm Sn)
Material data - housing
Color (Housing): gray (7042)
Insulating material: PA
Insulating material group: I
CTI according to IEC 60112: 600
Flammability rating according to UL 94: V0
Glow wire flammability index GWFI according to EN60695-2-12: 850
Glow wire ignition temperature GWIT according to EN60695-2-13: 775
Temperature for the ball pressure test according to EN60695-10-2: 125°C
Material data – actuating element
Color (Actuating element): gray (7042)
DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/158b0afe23d1ab408f646eacfe25f655/-S204x204-FJPG
Pitch: 3.5 mm
Width [w]: 26 mm
Height [h]: 16.7 mm
Length [l]: 12 mm
Installed height: 13.1 mm
Solder pin length [P]: 3.5 mm
Pin dimensions: 0.4 x 0.75 mm
PCB design
Pin spacing: 3.5 mm
Hole diameter: 1 mm
Mechanical testsTest for conductor damage and slackening
Specification: IEC 60999-1:1999-11
Result: Test passed
Pull-out test
Specification: IEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value: 0.2 mm² / solid / > 10 N
0.2 mm² / flexible / > 10 N
1.5 mm² / solid / > 40 N
1.5 mm² / flexible / > 40 N
Electrical testsTemperature-rise test
Specification: IEC 60947-7-4:2013-08
Requirement temperature-rise test: The sum of ambient temperature and temperature rise of the PCB terminal block shall not exceed the upper limiting temperature.
Short-time withstand current
Specification: IEC 60947-7-4:2013-08
Insulation resistance
Specification: IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions: >5MΩ
Air clearances and creepage distances |
Specification: IEC 60947-1:2007-06 + A1:2010-12 + A2:2014-09
Insulating material group: I
Comparative tracking index (IEC 60112): CTI 600
Rated insulation voltage (III/3): 200 V
Rated surge voltage (III/3): 2.5 kV
minimum clearance value - non-homogenous field (III/3): 1.5 mm
minimum creepage distance (III/3): 2.5 mm
Note on connection cross section: With connected conductor 1.5 mm² (solid).
Rated insulation voltage (III/2): 250 V
Rated surge voltage (III/2): 2.5 kV
minimum clearance value - non-homogenous field (III/2): 1.5 mm
minimum creepage distance (III/2): 1.5 mm
Rated insulation voltage (II/2): 400 V
Rated surge voltage (II/2): 2.5 kV
minimum clearance value - non-homogenous field (II/2): 1.5 mm
minimum creepage distance (II/2): 2 mm
Environmental and real-life conditionsVibration test
Specification: IEC 60068-2-6:2007-12
Frequency: 10 - 150 - 10 Hz
Sweep speed: 1octave/min
5g (60.1Hz...150Hz)
Amplitude: 0.35mm (10Hz...60.1Hz)
Test duration per axis: 2.5 h
Glow-wire test
Specification: IEC 60695-2-10:2000-10
Temperature: 850°C
Time of exposure: 5 s
Aging
Specification: IEC 60947-7-4:2013-08
Ambient conditions

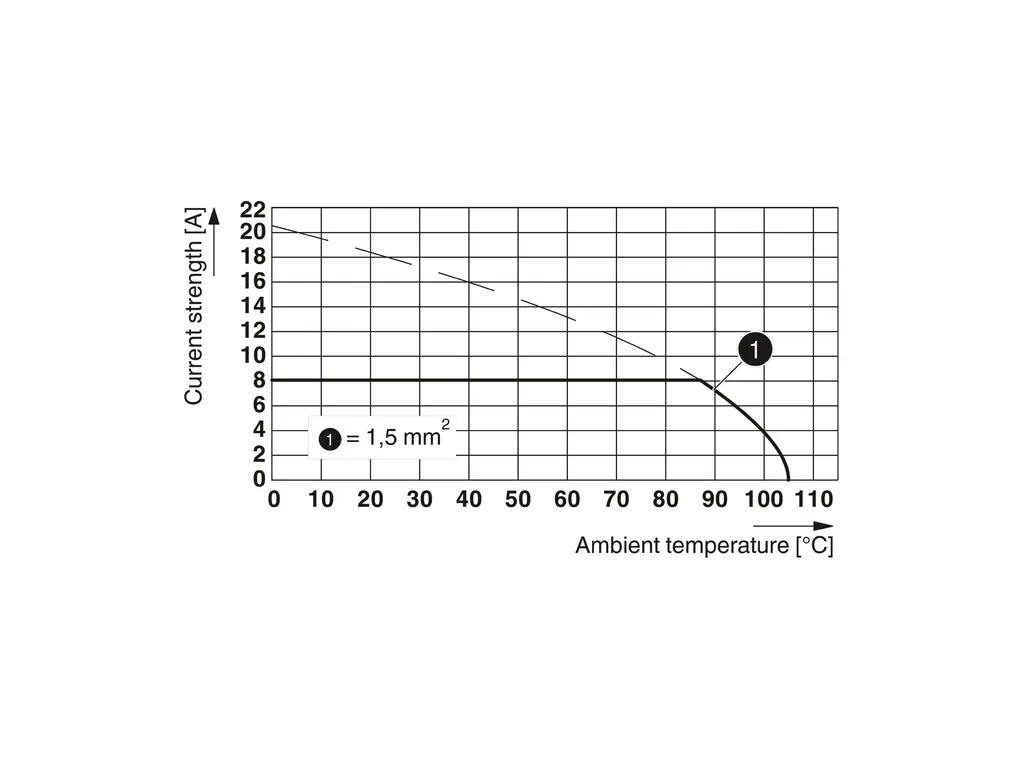

Ambient temperature (operation): -40°C ... 100°C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport): -40°C ... 70°C
Relative humidity (storage/transport): 30 % ... 70 %
Ambient temperature (assembly): -5°C ... 85°C
Packaging specificationsType of packaging: packed in cardboard
Specifiche
ECLASSECLASS-11.0: 27460101
ECLASS-12.0: 27460101
ECLASS-13.0: 27460101
ETIMETIM 8.0: EC002643
UNSPSCUNSPSC 21.0: 39121400
