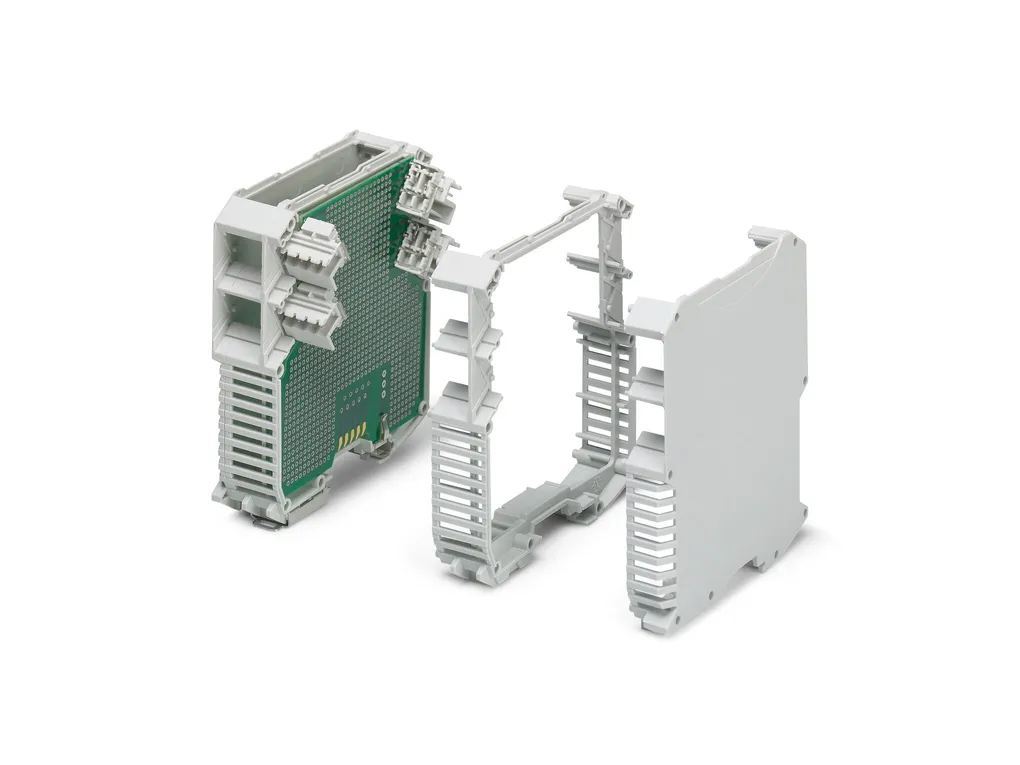

| Product properties | Product type: Housing half shells Product family: ME MAX..F G 3-3 Number of rows: 3 Type: Housing half shell (left), flat design Housing type: DIN rail housing Ventilation openings present: no Housing series: ME-MAX |
| Dimensions | Dimensional drawing: https://caas.production.phoenixcontact.coremedia.cloud/caas/v1/stable/media/22580/full/b250?format=jpg Width: 6.3 mm Height: 85 mm Depth: 90.35 mm Depth from top edge of DIN rail: 84.5 mm PCB design PCB thickness: 1.4 mm ... 1.8 mm |
| Material specifications | Color: light grey (7035) Flammability rating according to UL 94: V0 CTI according to IEC 60112: 600 Surface characteristics: untreated Housing material: Polyamide |
| Environmental and real-life conditions | Ambient conditions Max. IP code to attain: IP20 Ambient temperature (operation): -40°C ... 105°C (depending on power dissipation) Ambient temperature (storage/transport): -40°C ... 55°C Ambient temperature (assembly): -5°C ... 100°C Relative humidity (storage/transport): 80 % |
| PCB data | Type of PCB mount: Latching Thickness of the PCB: 1.4 mm ... 1.8 mm |
| Mounting | Mounting type: DIN rail mounting Mounting position: Vertical (horizontal DIN rail) |
| ECLASS | ECLASS-11.0: 27182702 ECLASS-13.0: 27190602 |
| ETIM | ETIM 8.0: EC001031 |
| UNSPSC | UNSPSC 21.0: 31261500 |
